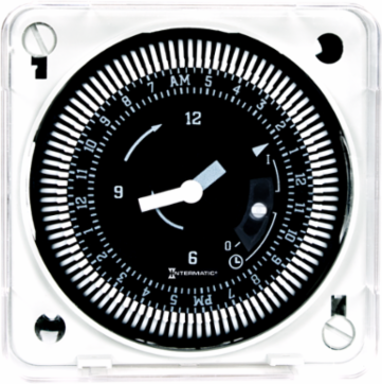

Intermatic MIL72EQTUZH-120 24-Hour 120V Electromechanical Timer, Flush Mount, 21A SPDT
- MPN: MIL72EQTUZH-120
- UPC: 078275153424
- PPN: INT-MIL72EQTUZH-120
- UNSPSC: 39122208
CAD
$177.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.
Features
- 21 A SPDT switch
- Synchronous drive or quartz drive (Q Models) with self-recharging battery backup
- 72-hour carry-over battery backup on Q models
- Captive trippers with 15-minute intervals
- Available with or without override
- True clock face, easy-to-set
- Surface/DIN rail or flush mount
- Clear plastic dust cover
- Compact size
Documentation & Downloads
Specifications
Key Specifications
- Warranty Period
- 1-Year limited
- Applications
- Aeration;Air Movement & Ventilation;Refrigeration Merchandiser;Septic Treatment;Generator Exercising
- Height
- 2.609 in
- Depth
- 1.359 in
ColorWhite
Marketing DescriptionThe MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.
Width2.828 in
Country of OriginMexico
