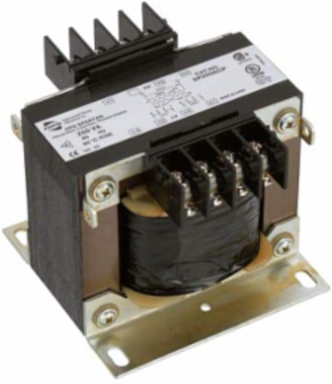

Hammond Power Solutions SP250SR Spartan Open Core & Coil Control Transformer 250VA 208x416V→12x24V 50/60Hz
- MPN: SP250SR
- UPC: 803423099411
- PPN: HPS-SP250SR
CAD
$100.86
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Spartan industrial open core-and-coil control transformer. Rated 250 VA. Primary voltage 208x416, 200x400, 190x380 V; secondary voltage 12x24, 11.5x23, 11x22 V; 50/60 Hz. Output current 20.8/10.4 A. Approximate shipping weight 6.5 lb.
Features
- Open core-and-coil construction for industrial control circuits
- High inrush capacity for solenoid and contactor loads
Documentation & Downloads
Specifications
Additional
| Voltage | 208 x 416 V Primary, 12 x 24 V Secondary |
|---|---|
| Output Amps | 20.8/10.4 A |
| Size / Dimensions | A: 3.78 in, B: 4.09 in, C: 3.40 in, D: 3.31 in, E: 2.99 in; Mounting Centers G x H: 0.22 x 0.44 in; Height with Finger Guard: 3.78 in; Height with Fuse Block Adapter: 3.59 in |
| Insulation Class | 130°C (Class B) |
| Compliance | CSA Certified, UL Listed, CE Marked, RoHS Compliant |
| VA Rating | 250 VA |
|---|---|
| Frequency | 50/60 Hz |
| Material | Copper Wound Coils |
| Temperature Rise | 80°C (up to 1500 VA) |
