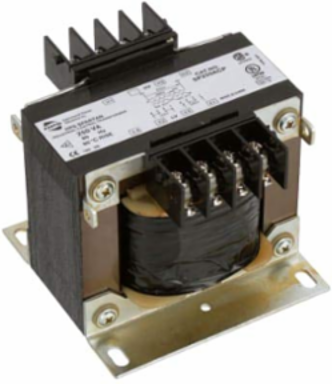

Hammond Power Solutions SP50ACP 50VA 600/480-120X240
Hammond Power Solutions SP50ACP 50VA 600/480-120X240
- MPN: SP50ACP
- UPC: 803423098575
- PPN: HPS-SP50ACP
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$51.05/ EA
Description
50VA 600/480-120X240
Features
- Engineered specifically for space-saving panel integration, this HPS Spartan series dry-type control transformer is ideal for OEM machinery, HVAC systems, and motor control circuits. The compact, open-chassis design features sturdy molded terminal blocks with standard screw connections, ensuring fast, highly secure wire routing inside high-density industrial enclosures without adding unnecessary bulk.
- Featuring versatile dual primary (600V/480V AC) and dual secondary (120V/240V AC) voltage capabilities, this 50 VA single-phase transformer easily adapts to diverse North American commercial power systems. Supplied with factory-included voltage links and jumpers, it eliminates the frustrating need to source separate step-down models for different facility requirements, drastically simplifying inventory for control panel builders and electricians.
- Built with premium, high-dielectric strength copper wound coils that are vacuum-impregnated with a protective polyester resin and completely oven-cured. This robust, bolted-core construction actively seals out destructive industrial moisture, airborne dust, and corrosion, preventing internal electrical arcing and extending the reliable lifespan of your sensitive relays, contactors, and solenoids.
- Fully recognized by cUL/UL, CSA, and CE safety standards, this industrial control transformer meets rigorous global regulations for power distribution and circuit isolation. Trusting factory-tested, code-compliant hardware protects your expensive automated equipment from dangerous electrical faults and ensures your new commercial retrofits easily pass strict local safety inspections.
Specifications
- VA Rating
- 50 VA
- Secondary Voltage
- 120 x 240 V
- Output Amperage
- 0.42/0.21 A
- Mounting Centers
- 2.13 x 2.64 in
- Height with Finger Guard
- 2.98 in
- Weight
- 2.2 lbs
- Material
- Copper wound coils
- Insulation Rise
- 80C rise
- Certifications
- CSA Certified, UL Listed, CE Marked, RoHS Compliant
Primary Voltage600/480 V
Frequency60 Hz
Overall Dimensions2.60 x 3.82 x 2.60 in
Mounting Slot0.22 x 0.44 in
Height with Fuse Block Adapter2.79 in
Mounting TypeBolt-on mounting brackets
Insulation Temperature Class130b0C (Class B)
Core ConstructionBolted core construction
StandardsMeets NEMA standards
