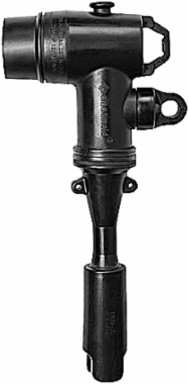

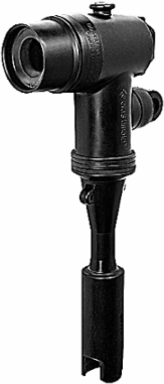

Thomas & Betts 252LRJS-B5220 Loadbreak Elbow Connector with Test Point and Jacket Seal
- MPN: 252LRJS-B5220
- UPC: 075114367158
- PPN: T-B-252LRJS-B5220
CAD
$258.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, with Jacket Seal, Cable Insulation Diameter - .635 to .905 inch. Bi-Metal Lug, Conductor Size 220 - #2 Stranded/Compressed or #1 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Equipped with an Internal Voltage Test Point. Has Provisions for De-Energized Operation using Standard Hotstick Tools.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression / Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersible
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point and Jacket Seal
Application15/25kV, 200 Amp Deadbreak Connection.
SizeCable Insulation Diameter - .635 to .905 inch.
Conductor RangeConductor Size 220 - #2 Stranded/Compressed or #1 Compact/Solid.
ColorBlack
Amperage Rating200 Amps
Temperature Rating-40 degrees to +65 degrees Celsius
Consist OfElbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
