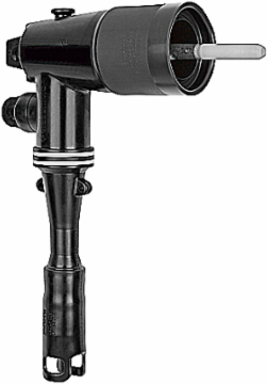

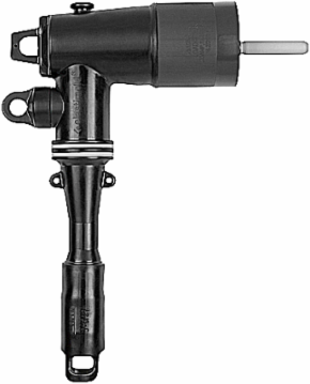

Thomas & Betts 262LRJS-A5210 Loadbreak Elbow Connector with Test Point and Jacket Seal
- MPN: 262LRJS-A5210
- UPC: 075114340922
- PPN: T-B-262LRJS-A5210
CAD
$272.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV, 200 Amp Loadbreak Elbow with Test Point and Jacket Seal. Cable Insulation Diameter 0.575 - 0.740 inches (14.6-18.8mm). Bi-Metal Compression Lug. Conductor Size 210 - #3 Stranded/Compressed or #2 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart, V.D. Cap Peroxide and Installation Instructions.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 2.44 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point. Built in Cable Jacket Seal.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Push-in
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 28kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point and Jacket Seal
Application25kV, 200 Amp, Loadbreak Connector
Size8.20 inch X 11.47 inch from bottom to center of Installation O-Ring, 2.86 inch Diameter
Conductor RangeConductor Size 210 - #3 Stranded/Compressed or #2 Solid/Compact
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist Of1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 V.D. Cap-Peroxide, Crimp Chart and Installation Instructions.
