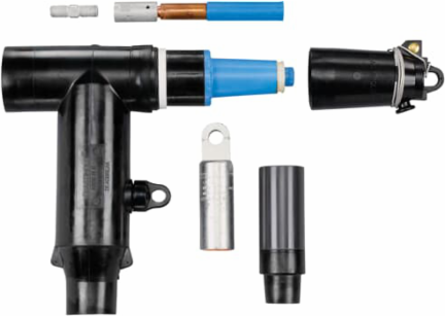

Thomas & Betts K656CETP-JAC01-DRG 25KV 600A COMBOT W-SEALING KIT
- MPN: K656CETP-JAC01-DRG
- UPC: 075114392242
- PPN: T-B-K656CETP-JAC01-DRG
- UNSPSC: 39121421
CAD
$2889.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kv, 600 Amp Series, Deadbreak Combo-T Connector Elbow with Intergral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 0.980 to 1.180 inches (24.9-30.0mm). Aluminum Conductor Material, Shearbolt Conductor Code AC01 - #2 Stranded / Compressed / Solid / Compact to 300 kcmil Stranded / Compressed / Solid / Compact. Sealing Kit. Insulating Cap.
Specifications
Additional Information
- Application
- 600 Amps, 25kV Connector
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 13.31 inches width, 10.88 inch bottom edge to center of bushing.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 25 kV
Brand / LabelElastimold
Connection TypeShear Bolt
Effective Date20190108
IncludesIncludes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Insulated Cap, Crimp Chart and Installation Instructions.
MaterialHousing - EPDM Rubber
Product TypeComboT Elbow with Test Point
Special FunctionsSealing Kit. Insulating Cap.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
