25KV DB ELBOW NO-SEALING KIT
Thomas & Betts

Thomas & Betts K656LR-N0410-CS871 25KV DB ELBOW NO-SEALING KIT

  • MPN: K656LR-N0410-CS871
  • UPC: 075114323130
  • PPN: T-B-K656LR-N0410-CS871
  • UNSPSC: 39121421

CAD

$887.40

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

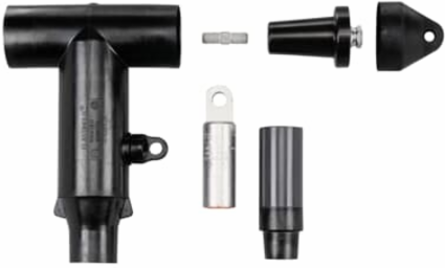

25kV, 600 Amp, Deadbreak, Elbow with Test Point, (includes Insulated Plug, Cap, Stud, Lug and Cable Adapter), No Sealing Kit, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. Any Customer Specific Modifications CS871 - CSA Die Compatibility.

Features

  • Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Connection
Compression
Size
Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing
Material
Housing - EPDM Rubber
Color
Black
Insulation
Yes EPDM Rubber
Environmental Conditions
Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application15/25kV, 600 Amp Deadbreak Elbow Connection
StandardANSI/IEEE Standard 386
Conductor Range1000 STR/COMPR kcmil
Voltage Rating25 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
