Thomas & Betts K656LRTP-M5400-DRG 25KV STICK OP KIT 600A N-SEALING
- MPN: K656LRTP-M5400-DRG
- UPC: 075114311823
- PPN: T-B-K656LRTP-M5400-DRG
- UNSPSC: 39121421
CAD
$2012.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

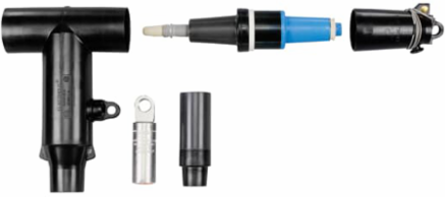

25 kV, 600 Amp, Deadbreak, Stick Op Connector Kit, with Test Point, Insulated Cap, Stick-Op Loadbreak Reducing Tap Plug, 600 Series Housing, Cable Adapter, and threaded 0360 Style Compression Lug. Cable Insulation Diameter 1.370-1.630. Conductor Size 1000 Compact/Solid, No Sealing Kit
Specifications
Additional Information
| Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
|---|---|
| Color | Black |
| Effective Date | 20160729 |
| Environmental Conditions | All Weatheronditions °C |
| Material | Housing - EPDM Rubber |
| Product Type | Stick Op Reducing Tap Plug Connector with Test Point |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 600 to 200 A |
| Enclosure Type | Yes, EPDM Rubber |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Special Functions | Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow. |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
