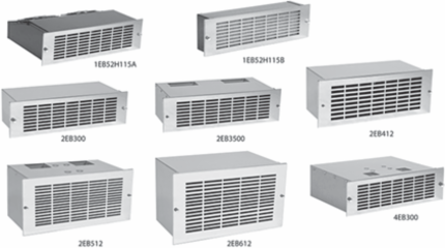

19 Inch Rack Mountable Fanpack Assembly, 125 CFM Max, 0.9 A, 115/230 VAC
nVent Hoffman

nVent Hoffman 2EB300R115 19 Inch Rack Mountable Fanpack Assembly, 125 CFM Max, 0.9 A, 115/230 VAC

  • MPN: 2EB300R115
  • UPC: 783510228521
  • PPN: HOF-2EB300R115

CAD

$891.69

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The nVent Hoffman 2EB300R115 rack mountable fan pack assembly is engineered for high-performance cooling within compact enclosures, featuring a robust maximum airflow of 125 CFM. Designed for 19-inch rack systems, this unit operates on a dual voltage input of 115/230 VAC and is compatible with both 50 and 60 Hz frequencies, ensuring versatility in diverse environments. With its brushed aluminum grille and permanently lubricated ball bearing motors, the fan pack not only enhances the aesthetic appeal but also ensures quiet, efficient operation. A washable aluminum filter further adds to its practicality, providing easy maintenance, while the built-in exhaust guard protects internal components from debris. Perfect for electrical box and enclosure cooling needs, this fan pack is 100% functionally tested, adhering to UL and CSA standards for reliability and safety.

Features

  • Permanent, Washable Aluminum Filter
  • 19-in. Rack Mountable
  • Brushed Aluminum Grille
  • Exhaust Guard
  • Power Cord
  • Permanently lubricated ball bearing motors
  • 100% functionally tested
  • 115/230 VAC
  • 50/60 Hz

Documentation & Downloads

Specifications

Key Specifications

Model Code
22852
Catalog Number
2EB300R115
B in.
19
Description
2EB300R Model Fanpack Assembly
Max Current (A)
0.9
Fahrenheit Max.
104
Width (in.)
19.00
Weight (lb.)
16.00
Bulletin NumberMCLO
A in.5.25
C in.8.22
CFM Max125
Voltage100 - 120 VAC
Height (in.)5.25
Depth (in.)8.22
StandardsUL recognized || CSA Certified Motors || CE
