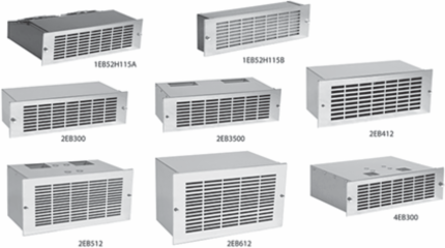

B" Model Fanpack Assembly 19 Inch Rack Mountable, 235 CFM Max, 115/230 VAC
nVent Hoffman

nVent Hoffman 1EB52H230B B" Model Fanpack Assembly 19 Inch Rack Mountable, 235 CFM Max, 115/230 VAC

  • MPN: 1EB52H230B
  • UPC: 783510225667
  • PPN: HOF-1EB52H230B

CAD

$538.46

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This 1EB52H230B B Model Fanpack Assembly from nVent Hoffman is expertly designed for rack mount applications, providing efficient climate control with its impressive airflow capacity of up to 235 CFM. The assembly is engineered to operate seamlessly within 19-inch racks and can accommodate a voltage range of 115/230 VAC, making it versatile for various installations. Featuring a brushed aluminum grille and a permanent, washable aluminum filter, it combines aesthetic appeal with functionality, ensuring the longevity of performance through its permanently lubricated ball bearing motors. Each unit undergoes rigorous testing to guarantee 100% functionality, providing reliable service in maintaining ideal temperatures and conditions within electrical enclosures.

Features

  • Permanent, Washable Aluminum Filter
  • 19-in. Rack Mountable
  • Brushed Aluminum Grille
  • Exhaust Guard
  • Power Cord
  • Permanently lubricated ball bearing motors
  • 100% functionally tested
  • 115/230 VAC
  • 50/60 Hz

Documentation & Downloads

Specifications

Key Specifications

Model Code
22566
Catalog Number
1EB52H230B
B in.
18
Description
B" Model Fanpack Assembly
Max Current (A)
0.31
Fahrenheit Max.
140
Width (in.)
19.00
Weight (lb.)
8.00
Bulletin NumberMCLO
A in.5.21
C in.13.7
CFM Max235
Voltage200 - 250 VAC
Height (in.)5.21
Depth (in.)3.43
StandardsUL recognized || CSA Certified Motors || CE
