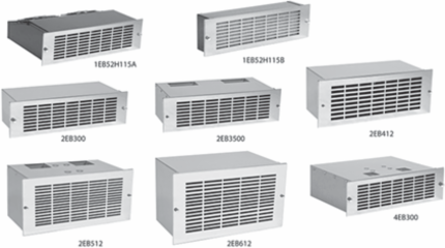

B" Model Fanpack Assembly, 19 Inch Rack Mountable, 235 CFM, 8 lb
nVent Hoffman

nVent Hoffman 1EB52H115B B" Model Fanpack Assembly, 19 Inch Rack Mountable, 235 CFM, 8 lb

  • MPN: 1EB52H115B
  • UPC: 783510225643
  • PPN: HOF-1EB52H115B

CAD

$790.46

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The nVent Hoffman B" Model Fanpack Assembly is an efficient solution for enhancing airflow in 19-inch rack environments, designed to effectively manage heat in various electrical enclosures. With a powerful airflow capacity of up to 235 CFM, this fanpack ensures optimal temperature control, making it suitable for both standard and high-performance applications. Featuring permanent, washable aluminum filters, a brushed aluminum grille, and permanently lubricated ball bearing motors, it delivers not only superior performance but also convenience and durability. This assembly operates on a voltage range of 100 - 120 VAC with a 50/60 Hz frequency, ensuring compatibility with various system configurations while being UL recognized and CSA certified for safety standards.

Features

  • Permanent, Washable Aluminum Filter
  • 19-in. Rack Mountable
  • Brushed Aluminum Grille
  • Exhaust Guard
  • Power Cord
  • Permanently lubricated ball bearing motors
  • 100% functionally tested
  • 115/230 VAC
  • 50/60 Hz

Documentation & Downloads

Specifications

Key Specifications

Model Code
22564
Catalog Number
1EB52H115B
B in.
18
Description
B" Model Fanpack Assembly
Max Current (A)
0.55
Fahrenheit Max.
140
Width (in.)
19.00
Weight (lb.)
8.00
Bulletin NumberMCLO
A in.5.21
C in.13.7
CFM Max235
Voltage100 - 120 VAC
Height (in.)5.21
Depth (in.)3.43
StandardsUL recognized || CSA Certified Motors || CE
