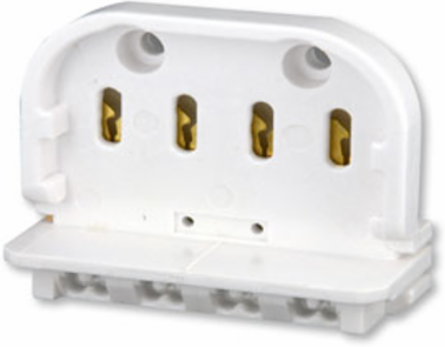

Leviton 13452 2G11 Base, 4-Pin, Twin Tube Fluorescent Lampholder, Horizontal, Slide-On, Straight-In Double Edge, , Quickwire 18AWG Solid or Str Tinned - White

2G11 Base, 4-Pin, Twin Tube Fluorescent Lampholder, Horizontal, Slide-On, Straight-In Double Edge, , Quickwire 18AWG Solid or Str Tinned - White

MPN: 13452
UPC: 078477111017
PPN: LEV-13452

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$13.55/ EA

Qty:

Loading add to cart quantity...

Description

2G11 Base, 4-Pin, Twin Tube Fluorescent Lampholder, Horizontal, Slide-On, Straight-In Double Edge, , Quickwire 18AWG Solid or Str Tinned - White

Specifications

Standards and Certifications

CSA Certified: File LR-1863

UL Listed: File E5833

NOM Certified057

Product Features

Availability: Distribution

Color: White

Lamp Base: 2G11

Lamp Type: Twin Tube Fluorescent

Light Type: Fluorescent

Warranty: 1 Year Limited

Body MaterialThermoset

Contact MaterialCopper-Alloy

Lamp Contacts4-Pin

Lampholder TypeCompact

Standards and CertificationsUL/CSA/NOM

Mechanical Specifications

Contact Type: Straight-In Double Edge

Mounting Type: Slide-On

Termination: Quickwire 18AWG Solid or Str. Tinned

Wire Strip Length: 3/8 Inch

Mounting OrientationHorizontal

Panel Thickness18-20 Ga. Panel

Voltage600 Volt

Specifications

Country of Origin: Please Contact Customer Service

RoHS CompliantTrue
