Leviton

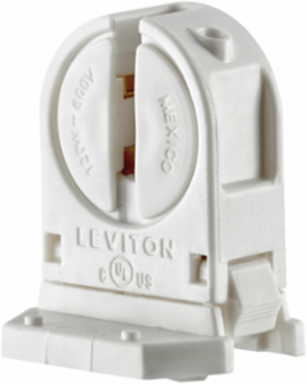

Leviton 13654-SNP Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White

Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White
  • MPN: 13654-SNP
  • UPC: 078477164853
  • PPN: LEV-13654-SNP

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2.89/ EA

Description

Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White

Specifications

Mechanical Specifications

Contact Type
Lamp-Lock
Panel Thickness
22-25 Ga. Panel
Termination
Quickwire 18AWG Solid or Str. Tinned
Wire Strip Length
3/8 Inch
Mounting TypeSnap-In or Slide-ON
Rated Wattage120W
Voltage600 Volt

Product Features

Availability
Distribution
Color
White
Lamp Base
Miniature
Lamp Type
T5
Light Type
Fluorescent
Style Name
Low Profile
Body MaterialThermoplastic
Contact MaterialCopper-Alloy
Lamp ContactsBi-Pin
Lampholder TypeLinear
Standards and CertificationsUL/CSA/NOM
Warranty1 Year Limited

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Standards and Certifications

CSA Certified
File LR-1863
UL Listed
File E5833
NOM Certified057
