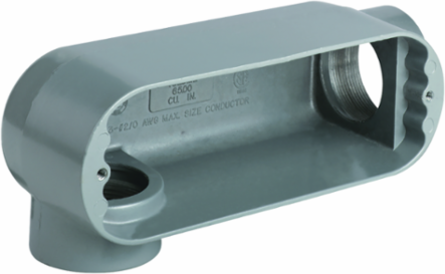

Killark OLR-9 3-1/2 Inch Aluminum LR Hub Conduit Body, NPT Tapered Threads, Raintight, 292 cu in Volume
Killark OLR-9 3-1/2 Inch Aluminum LR Hub Conduit Body, NPT Tapered Threads, Raintight, 292 cu in Volume
- MPN: OLR-9
- UPC: 783936490595
- PPN: HBL-OLR-9
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1155.28/ EA
Description
3-1/2" LR Hub, Aluminum O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 292 cu. in.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Hub Size
- 3-1/2"
- Special Features
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 292 cu. in.
- Width
- 8 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 3-1/2" LR TYPE AL CONDUIT
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 10
- UL File Number
- E3397
- Series
- O Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936490595
Dimensions17 in x 8 in x 6 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height6 in
Length17 in
TypeConduit Body
Engineering Drawing 1 Display TextOLR-9 Engineering Drawing
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLR
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
