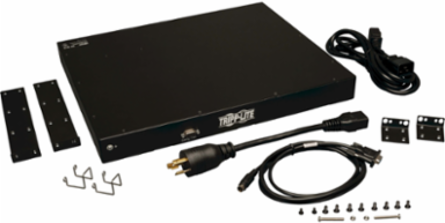

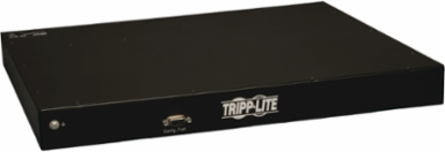

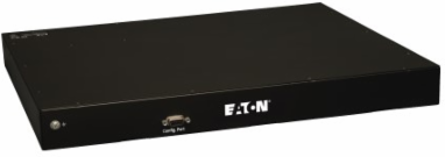

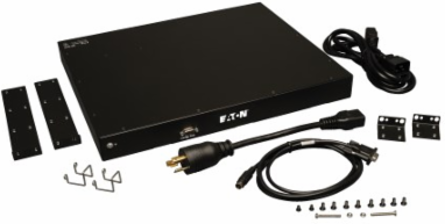

Tripp Lite PDUMNH20HV 3.2-3.8kW Single-Phase Monitored PDU, 208/220/230/240V Outlets (8-C13), C20/L6-20P Adapter, 8ft Cord, 1U Rack-Mount; TAA Compliant

3.2-3.8kW Single-Phase Monitored PDU, 208/220/230/240V Outlets (8-C13), C20/L6-20P Adapter, 8ft Cord, 1U Rack-Mount; TAA Compliant
3.2-3.8kW Single-Phase Monitored PDU, 208/220/230/240V Outlets (8-C13), C20/L6-20P Adapter, 8ft Cord, 1U Rack-Mount; TAA Compliant
3.2-3.8kW Single-Phase Monitored PDU, 208/220/230/240V Outlets (8-C13), C20/L6-20P Adapter, 8ft Cord, 1U Rack-Mount; TAA Compliant
  • MPN: PDUMNH20HV
  • UPC: 037332160928
  • PPN: TRP-PDUMNH20HV

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$993.33/ EA

Description

3.2-3.8kW Single-Phase Monitored PDU, 208/220/230/240V Outlets (8-C13), C20/L6-20P Adapter, 8ft Cord, 1U Rack-Mount; TAA Compliant

Features

  • Monitored 16/20A 208/220/230/240V PDU, 1U horizontal rackmount
  • Reports voltage, frequency & load level via ethernet interface
  • Visual current meter, Reversible housing
  • C20 inlet; 8ft / 2.4m C20 cable with L6-20P plug adapter
  • 8 C13 outlets with included plug-lock retention sleeves
  • Temperature, humidity and contact-closure monitoring options
  • TAA Compliant for GSA Schedule purchases
  • 2-year limited warranty

Specifications

Certifications

Certifications
Tested to UL 60950-1 (USA, Canada), CE (EEA), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Physical

Form Factors Supported
1U horizontal rackmount in 2 or 4 post racks
Minimum Required Rack Depth (inches)
17.1
Shipping Dimensions (hwd / in.)
6.00 x 20.75 x 23.00
Unit Dimensions (hwd / in.)
1.75 x 17.5 x 14.8
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)13.50
Unit Weight (lbs.)9.00

User Interface, Alerts & Controls

Front Panel LCD Display
Digital meter reports PDU output current in amps
LED Indicators
n/a
Switchesn/a

Input

PDU Input Voltage
208; 220; 230; 240
Maximum Input Amps
16
Input Phase
Single-Phase
Recommended Electrical Service20A 208/240V; 16A 230V
PDU Plug TypeNEMA L6-20P; IEC-320 C20
Input Cord Length (ft.)8.5

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(8) C13
Overload Protection
n/a
Output Capacity Details3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V) / 16A total capacity; 12A (10A CE) max per C13 outlet
Output Nominal Voltage208; 220; 230; 240

Communications

SNMP Compatibility
Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Relative Humidity5 to 95% non-condensing

Overview

UPC Code
037332160928
PDU TypeMonitored

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty

Downloads
