Tripp Lite PDUMH20HVNET 3.3-3.8kW Single-Phase Switched PDU, LX Platform Interface, 208/220/230/240V Outlets (8 C13), C20 / L6-20P input, 8ft Cord, 1U Rack-Mount, TAA
Tripp Lite PDUMH20HVNET 3.3-3.8kW Single-Phase Switched PDU, LX Platform Interface, 208/220/230/240V Outlets (8 C13), C20 / L6-20P input, 8ft Cord, 1U Rack-Mount, TAA
- MPN: PDUMH20HVNET
- UPC: 037332139283
- PPN: TRP-PDUMH20HVNET
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1485.48/ EA
Description
3.3-3.8kW Single-Phase Switched PDU, LX Platform Interface, 208/220/230/240V Outlets (8 C13), C20 / L6-20P input, 8ft Cord, 1U Rack-Mount, TAA
Features
- Switched 16/20A 208/220/230/240V PDU, 1U Horizontal Rackmount format
- Reports voltage, frequency & loading information via LX platform Ethernet interface
- Visual current meter, reversible housing

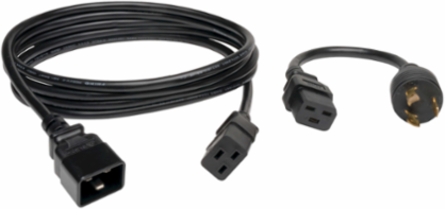

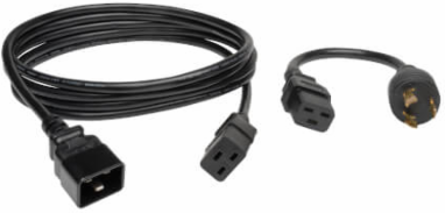

- C20 inlet; 8ft / 2.4m C20 input cable with L6-20P adapter
- 8 C13 switched outlets with plug lock retention sleeves
- Temperature, humidity and contact-closure monitoring options
- Auto Probe for Autonomous Device Management
- TAA Compliant
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950), RoHS compliant, TAA compliant
Physical
- Form Factors Supported

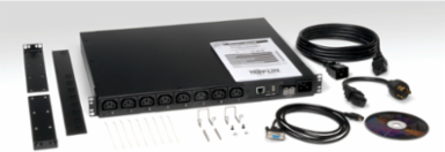

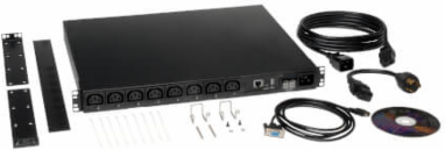

- 1U rackmount. Includes mounting accessories for 2-4 post racks
- Minimum Required Rack Depth (inches)
- 17.1
- Shipping Dimensions (hwd / in.)
- 5.40 x 20.70 x 22.40
- Unit Dimensions (hwd / in.)
- 1.72 x 17.33 x 14.77
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)14.40
Unit Weight (lbs.)9.00
User Interface, Alerts & Controls
- Front Panel LCD Display
- Digital display reports total PDU output current in amps
- Switches
- n/a
Front Panel LEDs8 LEDs display power on-off status for each output receptacle
Input
- PDU Input Voltage
- 208; 220; 230; 240
- Maximum Input Amps
- 20
- PDU Plug Type
- NEMA L6-20P; IEC-320 C20
- Input Cord Length (ft.)
- 8
Recommended Electrical Service20A 208/240V; 16A 230V
Maximum Input Amps DetailsAgency de-rated to 16A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (8) C13
- Overload Protection
- n/a
Output Capacity Details3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V) / 16A total capacity; 12A (10A CE) max per C13 outlet
Output Nominal Voltage208; 220; 230; 240
Customized Load Management Receptacles8 individually switched output receptacles
Communications
- SNMP Compatibility
- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332139283
PDU TypeSwitched
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
