Tripp Lite PDUMH20NET2LX 1.9kW Single-Phase Switched PDU, 12 ft Cord, 8 NEMA 5-15/20R Outlets, 1U Rack
- MPN: PDUMH20NET2LX
- UPC: 037332203281
- PPN: TRP-PDUMH20NET2LX
CAD
$1329.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1.9kW 1U PDU distributes, monitors and manages AC power in an IT environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
Features
- 1.9kW 120V single-phase switched 1U PDU
- 8 individually controllable NEMA 5-15/20R outlets
- Built-in Java-free LX Platform interface for remote access 24/7
- Digital ammeter for on-site load monitoring in real time

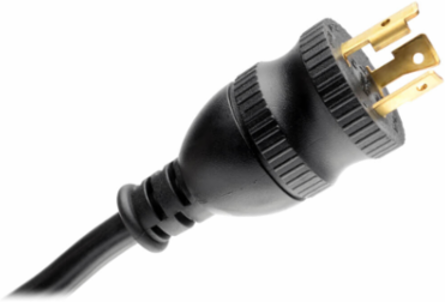

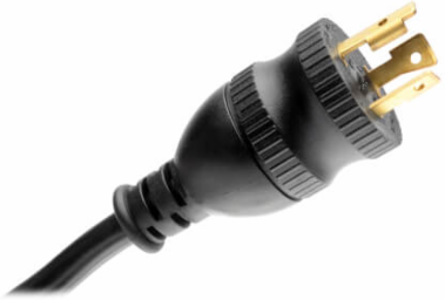

- NEMA L5-20P input with 12 ft. AC power cord and 5-20P adapter
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Distributes, Monitors and Manages Network-Grade AC Power
- 8 Switched NEMA 5-15/20R Outlets Distribute AC Power
- Built-In LX Platform Interface
- Broad Communications Compatibility
- Essential Safety Features
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Flexible Mounting Options
- TAA-Compliant
Documentation & Downloads
Specifications
Additional
- Voltage
- 100-127V
- Power Capacity
- 2.03 kW (127V max), 1.92 kW (120V), 1.6 kW (100V)
- Output Receptacles
- 8 NEMA 5-15/20R individually switched
- Input Plug Type
- NEMA 5-20P; NEMA L5-20P with 5-20P adapter
- Unit Dimensions
- 1.75 x 17.5 x 4.25 in
- Material
- Metal
- Storage Temperature Range
- -22 to 122 °F (-30 to 50 °C)
- Operating Elevation
- 0-10,000 ft (0-3000 m)
- Communication Speed
- 10/100 Mbps auto-sensing
- Warranty
- 2-year limited warranty
Amperage20A (de-rated to 16A continuous)
Input PhaseSingle-Phase
PDU Form FactorHorizontal 1U rackmount
Cord Length12 ft
Unit Weight5.99 lbs
Operating Temperature Range5 to 122 °F (−15 to 50 °C)
Relative Humidity5 to 95% (non-condensing)
Frequency Compatibility50 / 60 Hz
CertificationsUL 60950-1, CSA-C22.2 No. 60950-1, Class A Emissions, NOM, RoHS, TAA Compliant
