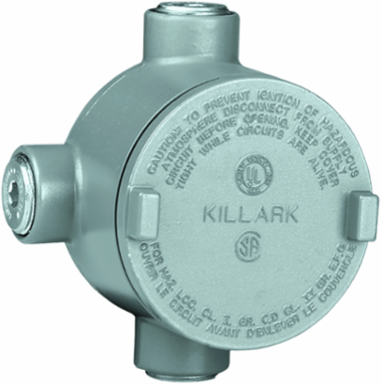

Killark GRR-2 Aluminum Outlet Body 3/4 Inch with Blank Cover, 6.375 x 6 x 4.375 Inch
- MPN: GRR-2
- UPC: 783936230085
- PPN: HBL-GRR-2
- UNSPSC: 39121314
CAD
$132.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" Aluminum GRR Outlet Body, W/ Blank AL Cover
Features
- Cast conduit hubs with integral bushings
- Blank cover included
- Replacement cover catalog number GRRBC
- Compact size
- Supplied with five hubs and three close-up plugs
- Cast conduit hubs with integral bushings. Blank cover included. Compact size. Supplied with five hubs and three close-up plugs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/4"
- Color
- Gray
- Size
- 6.375 in x 6 in x 4.375 in
- Type
- Outlet Body With Cover
- Weight
- 1.45 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- GR Outlet Bodies Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions6.375 in x 6 in x 4.375 in
Height4.375 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length6.375 in
Special FeaturesCast conduit hubs with integral bushings. Blank cover included. Compact size. Supplied with five hubs and three close-up plugs.
Width6 in
Cover TypeBlank
ARRA CompliantContact Manufacturer
Description - Invoice3/4" GRR W/BLANK COVER
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging1.45
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936230085
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
