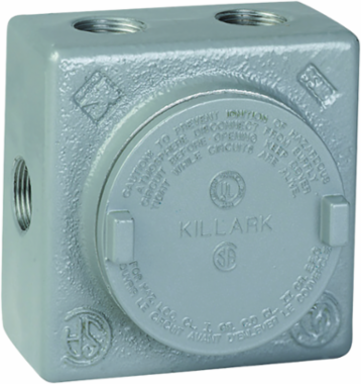

Killark GRSS-2 3/4 Inch Aluminum Outlet Body with 7 Internal Hubs, 7.875 x 5.875 x 4 Inch, Gray
Killark GRSS-2 3/4 Inch Aluminum Outlet Body with 7 Internal Hubs, 7.875 x 5.875 x 4 Inch, Gray
- MPN: GRSS-2
- UPC: 783936230139
- PPN: HBL-GRSS-2
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$152.77/ EA
Description
3/4" Aluminum GRSS Outlet Body, 7 Internal Hub Config
Features
- Internal hubs
- Blank cover included (Cat. No. GRRBC)
- Compact design and multiple hub configurations
- Furnished with internal ground screw
- Cast-in brackets on cover for use with breaker-bar tools
- Finished with 7 internal hubs
- Internal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
Specifications
Specifications
- Size
- 7.875 in x 5.875 in x 4 in
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/4"
- Weight
- 2.63 lb.
- Application
- Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- GR Outlet Bodies
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936230139
Special FeaturesInternal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
Country of OriginCanada
Dimensions7.875 in x 5.875 in x 4 in
Height4 in
Length7.875 in
Width5.875 in
TypeOutlet Body With Cover
Description - InvoiceOUTLET BODY, SQUARE 3/4" AL
Harmonization Code7609000299
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging2.63
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
