Killark E27SA 3/4 Inch Aluminum Conduit Body with Innovative Spring Clip Design and NEMA 3 Seal
Killark E27SA 3/4 Inch Aluminum Conduit Body with Innovative Spring Clip Design and NEMA 3 Seal
- MPN: E27SA
- UPC: 783936080772
- PPN: HBL-E27SA
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$37.28/ EA
Description

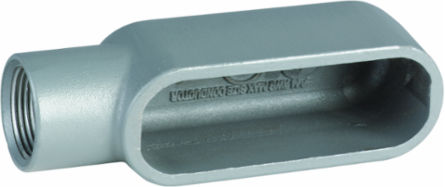

3/4" E Hub, Aluminum Form 7 Conduit Body
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 2.000 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 2 in
- Length
- 6 in
- Type
- Conduit Body
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- COND BODY CORROSAFE7 3/4" E
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 9.6
- UL File Number
- E3397
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions6 in x 2 in x 2 in
Hazardous Rating(s)Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
ColorGray
Hub Size3/4"
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Width2 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternE
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Carton - SCC-14 Next Lower Level Sub Pack00783936080772
Certifications
- EU RoHS Indicator
- Contact Manufacturer
