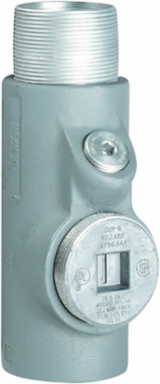

Killark ENY-2-T ¾ Inch Aluminum Seal Fitting with Nipple, Copper-Free, 1.34 lb Weight
- MPN: ENY-2-T
- UPC: 783936110516
- PPN: HBL-ENY-2-T
- UNSPSC: 39131708
CAD
$59.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
¾" ENY Seal Fitting Aluminum with Nipple Male/Female
Features
- Minimal turn radius for optimal spacing of both enclosures and conduit
- Large openings for ease of access to conductors for proper dam installation
- Engineered to latest 419 hub specifications for superior continuity and ingress protection
- Integral bushings to protect conductors during installation
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Height
- 0.1 in
- Length
- 5 in
- Type
- Sealing Fitting With Nipple
- Weight
- 1.34 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- ENY Series
- BOX SIZE
- 0.100x5.000x10.000 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936110516
- Master Pack Description
- Each
Dimensions5 in x 10 in x 0.1 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Hub Size3/4"
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Width10 in
General Literature Asset 1 Display TextHazardous-rated seal-off fittings in expanded trade sizes and with improved design
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL FTG 3/4" AL W/ NIPPLE
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.55
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack13.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
NAICS Code3359323114
