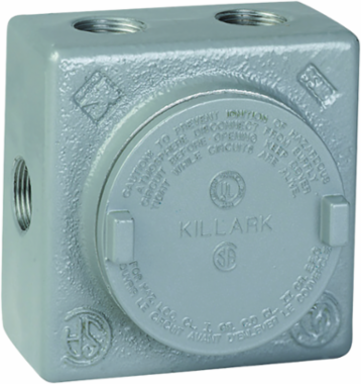

Killark GRSS-2M 3/4 Inch Iron Outlet Body with 7 Internal Hubs, Compact Design, Gray Finish
- MPN: GRSS-2M
- UPC: 783936232065
- PPN: HBL-GRSS-2M
- UNSPSC: 39121314
CAD
$515.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" Iron GRSS Outlet Body, 7 Internal Hub Config
Features
- Internal hubs
- Blank cover included (Cat. No. GRRBC)
- Compact design and multiple hub configurations
- Furnished with internal ground screw
- Cast-in brackets on cover for use with breaker-bar tools
- Finished with 7 internal hubs
- Internal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/4"
- Color
- Gray
- Size
- 7.5 in x 5.875 in x 4.125 in
- Type
- Outlet Body With Cover
- Cover Type
- Blank
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- OUTLET BODY, SQUARE 3/4 FE
- Harmonization Code
- 7307193060
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 6.91
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936232065
- Master Pack Description
- Each
Dimensions7.5 in x 5.875 in x 4.125 in
Height4.125 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length7.5 in
Special FeaturesInternal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
Width5.875 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11716
UL File NumberE10514
SeriesGR Outlet Bodies Series
BOX SIZE4.125x7.500x5.875 (in)
Carton - Total Units1 EA
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
