Killark OLL-2 ¾ Inch LL Hub O Conduit Body, Aluminum, Raintight, 7 cu. in. Volume
- MPN: OLL-2
- UPC: 783936490427
- PPN: HBL-OLL-2
- UNSPSC: 39131708
CAD
$24.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

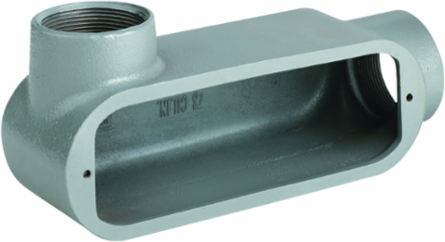

¾" LL Hub O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 7 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Hub Size
- 3/4"
- Special Features
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 7 cu. in.
- Width
- 3.75 in
- Engineering Drawing 1 Display Text
- OLL-2 Engineering Drawing
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11852
- Hub Pattern
- LL
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.900 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Master Pack Description
- Each
Dimensions6.88 in x 3.75 in x 5.5 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height5.5 in
Length6.88 in
TypeConduit Body
Weight0.38 lb.
ARRA CompliantContact Manufacturer
Description - Invoice3/4" ALUM CONDUIT BODY TYPE LL
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging0.38
UL File NumberE3397
SeriesO Series
BOX SIZE4.125x7.625x5.875 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936490427
Item Package TypeK-PAK (cover & gasket included)
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
