Killark COT-2CG 3/4 Inch Aluminum T Hub Conduit Body with Cover & Gasket
- MPN: COT-2CG
- UPC: 783936067780
- PPN: HBL-COT-2CG
- UNSPSC: 39131708
CAD
$115.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

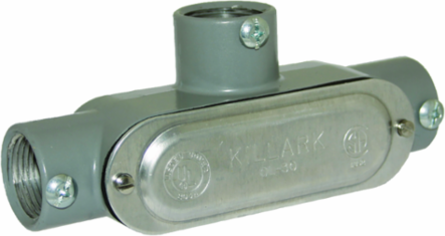

3/4" T Hub, Aluminum Combo Conduit Body
Features
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 7 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Finish
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Height
- 2 in
- Length
- 7 in
- Application
- To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- T
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- NAICS Code
- 3359323110
Special FeaturesCombination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 7 cu. in.
Country of OriginMexico
Dimensions7 in x 3 in x 2 in
Hub Size3/4"
Width3 in
Cover TypeStamped
TypeConduit Body With Cover & Gasket
Description - InvoiceCOMBO T CONDUIT BODY AL, CVR, GASK 3/4"
Harmonization Code7609000299
Lead Time49 wk
Order Multiple10 EA
Sub Class CodeD30D231
Gross Weight with Packaging0.48
UL File NumberE3397
SeriesCO Series
BOX SIZE8.875x15.500x6.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783936067780
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
