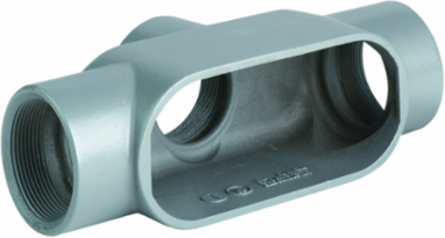

Killark TB27 3/4 Inch Iron Conduit Body, TB Hub, Length 7 Inch, Width 2 Inch, NEMA 3 Seal
Killark TB27 3/4 Inch Iron Conduit Body, TB Hub, Length 7 Inch, Width 2 Inch, NEMA 3 Seal
- MPN: TB27
- UPC: 783936011813
- PPN: HBL-TB27
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$68.49/ EA
Description
3/4" TB Hub, Iron Form 7 Conduit Body
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 2.000 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 3 in
- Length
- 7 in
- Type
- Conduit Body
- Weight
- 1.66 lb.
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- TB
- Material
- Iron
- BOX SIZE
- 4.125x11.875x7.500 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936011813
- Master Pack Description
- Each
Dimensions7 in x 2 in x 3 in
Hazardous Rating(s)Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
ColorGray
Hub Size3/4"
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Width2 in
ARRA CompliantContact Manufacturer
Description - InvoiceDURALOY7 3/4" TB COND.BDY FE
Harmonization Code7307110030
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging1.66
UL File NumberE3397
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.540 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
