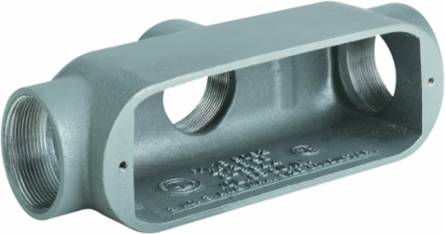

Killark OTB-2M 3/4 Inch TB Hub Conduit Body, Malleable Iron, Raintight, 7 cu. in. Volume
- MPN: OTB-2M
- UPC: 783936480862
- PPN: HBL-OTB-2M
- UNSPSC: 39131708
CAD
$83.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" TB Hub, Iron O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 7 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Hub Size
- 3/4"
- Special Features
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 7 cu. in.
- Width
- 2 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 3/4" IRON CONDUIT BODY TYPE TB
- Harmonization Code
- 7307193060
- Lead Time
- 70 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 1.17
- UL File Number
- E3397
- Series
- O Series
- BOX SIZE
- 5.500x7.500x5.500 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936480862
- Master Pack Description
- Each
- Pallet - Total Units
- 1800 EA
- NAICS Code
- 3359323110
Dimensions7 in x 2 in x 3 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height3 in
Length7 in
TypeConduit Body
Weight1.17 lb.
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternTB
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.160 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Pallet - GTIN - Package50783936480867
Pallet Weight0.000 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
