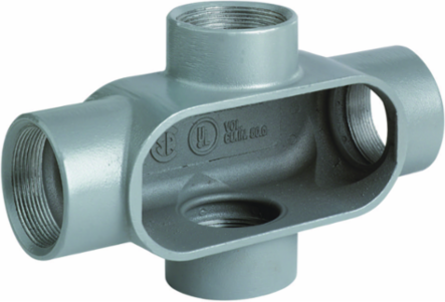

Killark X27 3/4 Inch Hub Iron Conduit Body, NEMA 3 Seal, Powder Epoxy Paint
- MPN: X27
- UPC: 783936011615
- PPN: HBL-X27
- UNSPSC: 39131708
CAD
$88.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" X Hub, Iron Duraloy 7 Conduit Body,
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 3 in
- Length
- 7 in
- Type
- Conduit Body
- Engineering Drawing 1 Display Text
- X27 Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 3/4" CAST IRON COND BODY "X"
- Harmonization Code
- 7307110030
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 1.76
- UL File Number
- E3397
- Series
- Duraloy 7 Series
- BOX SIZE
- 4.125x11.875x5.375 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936011615
- Master Pack Description
- Each
Dimensions7 in x 4 in x 3 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size3/4"
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Width4 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternX
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.800 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359323110
