Brady

Brady 2HX-094-2-BL-2 PermaSleeve HX 3 Inch Heat Shrink Wire Marking Sleeves, 2:1 Shrink Ratio, Blue

PermaSleeve HX 3 Inch Heat Shrink Wire Marking Sleeves, 2:1 Shrink Ratio, Blue
PermaSleeve HX 3 Inch Heat Shrink Wire Marking Sleeves, 2:1 Shrink Ratio, Blue
PermaSleeve HX 3 Inch Heat Shrink Wire Marking Sleeves, 2:1 Shrink Ratio, Blue
PermaSleeve HX 3 Inch Heat Shrink Wire Marking Sleeves, 2:1 Shrink Ratio, Blue
PermaSleeve HX 3 Inch Heat Shrink Wire Marking Sleeves, 2:1 Shrink Ratio, Blue
  • MPN: 2HX-094-2-BL-2
  • UPC: 662820820932
  • PPN: BRD-2HX-094-2-BL-2

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2428.44/ EA

Description

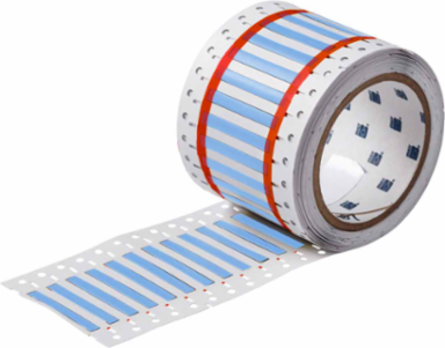

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

Features

  • Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
  • RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
  • Tested per ASTM E162 and ASTM E662
  • Operating temperature of -40°F to 248°F (-40°C to 120°C)

Specifications

Specifications

Material Number
B-7642
Diameter as Supplied
0.094 in
UOM
Roll of 5000 Each
Maximum Service Temperature °F
248 °F
Maximum Wire Gauge
20 AWG
Minimum Wire Diameter
0.047 in
Printable Sides
Double-Side Printable
UPC
662820820932
Quantity per Row
2
Roll Width
2 in

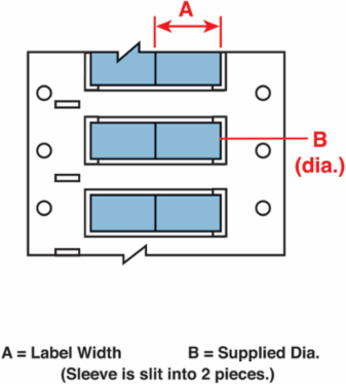

Sleeve Size
0.094 in Dia x 1 in W
Sleeve Slits
Yes
Trade Name
PermaSleeve®
Color
Blue
Label/Media Format
Roll
Material
Polyolefin
Print Technology
Thermal Transfer
Suggested Ribbon Series
R4300, R6000, R6400, R6600
California Prop 65Cancer - || www.p65warnings.ca.gov
Dimensions0.182 in H
FinishMatte
Maximum Wire Diameter0.08 in
Minimum Service Temperature °F-40 °F
Minimum Wire Gauge24 AWG
Product Number117365
Quantity per Roll5000
Recovered Diameter0.047 in
Shrink Ratio2:1
Sleeve Size(m)2.4 mm Dia x 25.4 mm W
Sleeve Width1 in
ApplicationsCable & Wire Marking
For Use with PrinterBBP®72 Label Printer, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer
Label PropertiesHeat Shrink Sleeves
Material PropertiesHeat-Shrinkable
Resistance PropertiesChemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
