Brady 2HX-1000-2-VT-4 3 Inch PermaSleeve HX Heat Shrink Wire Marking Sleeves, 2:1 Shrink Ratio, Violet, 0.5 Inch W
- MPN: 2HX-1000-2-VT-4
- UPC: 662820818762
- PPN: BRD-2HX-1000-2-VT-4
CAD
$992.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

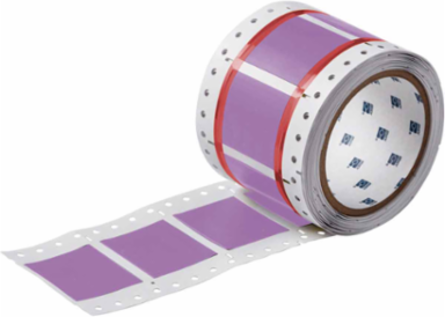

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Key Specifications
- Material Number
- B-7642
- Diameter as Supplied
- 1 in
- UOM
- Roll of 1000 Each
- Maximum Service Temperature °F
- 248 °F
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Gauge
- 2/0 AWG
- Product Number
- 117148
- Quantity per Roll
- 1000
- Recovered Diameter
- 0.5 in
- Shrink Ratio
- 2:1

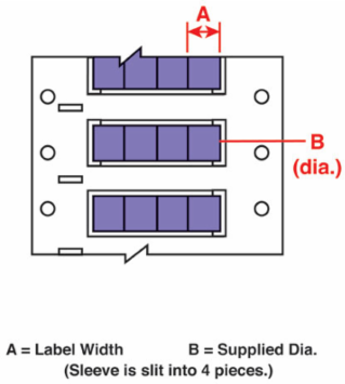

- Sleeve Size(m)
- 25.4 mm Dia x 12.7 mm W
- Sleeve Width
- 0.5 in
- Applications
- Cable & Wire Marking
- For Use with Printer
- BBP®72 Label Printer, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-Shrinkable
- Resistance Properties
- Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
California Prop 65Cancer - || www.p65warnings.ca.gov
Dimensions1.66 in H
FinishMatte
Maximum Wire Diameter0.95 in
Minimum Wire Diameter0.5 in
Printable SidesDouble-Side Printable
UPC662820818762
Quantity per Row4
Roll Width2 in
Sleeve Size1 in Dia x 0.5 in W
Sleeve SlitsYes
Trade NamePermaSleeve®
ColorViolet
Label/Media FormatRoll
MaterialPolyolefin
Print TechnologyThermal Transfer
Suggested Ribbon SeriesR4300, R6000, R6400, R6600
