Brady 2HX-750-2-OR-3 PermaSleeve HX 3" Heat Shrink Wire Marking Sleeves, Polyolefin, 750 Each
- MPN: 2HX-750-2-OR-3
- UPC: 662820824107
- PPN: BRD-2HX-750-2-OR-3
CAD
$815.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features

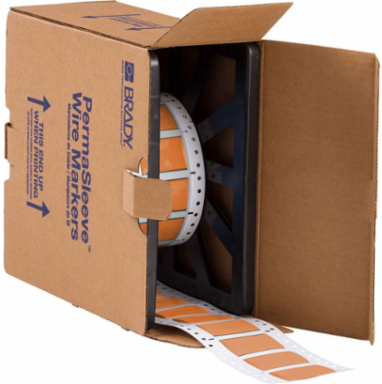

- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Key Specifications
- Material Number
- B-7642
- Diameter as Supplied
- 0.75 in
- UOM
- Roll of 750 Each
- Maximum Service Temperature °F
- 248 °F
- Maximum Wire Gauge
- 4/0 AWG
- Minimum Wire Diameter
- 0.375 in
- Printable Sides
- Double-Side Printable
- UPC
- 662820824107
- Quantity per Row
- 3
- Roll Width
- 2 in
- Sleeve Size
- 0.75 in Dia x 0.67 in W
- Sleeve Slits
- Yes
- Trade Name
- PermaSleeve®
- Color
- Orange
- Label/Media Format
- Roll
- Material
- Polyolefin
- Print Technology
- Thermal Transfer
- Suggested Ribbon Series
- R4300, R6000, R6400, R6600
California Prop 65Cancer - || www.p65warnings.ca.gov
Dimensions1.25 in H
FinishMatte
Maximum Wire Diameter0.7 in
Minimum Service Temperature °F-40 °F
Minimum Wire Gauge2 AWG
Product Number117665
Quantity per Roll750
Recovered Diameter0.375 in
Shrink Ratio2:1
Sleeve Size(m)19.1 mm Dia x 17 mm W
Sleeve Width0.67 in
ApplicationsCable & Wire Marking
For Use with PrinterBBP®72 Label Printer, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer
Label PropertiesHeat Shrink Sleeves
Material PropertiesHeat-Shrinkable
Resistance PropertiesChemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
