Brady

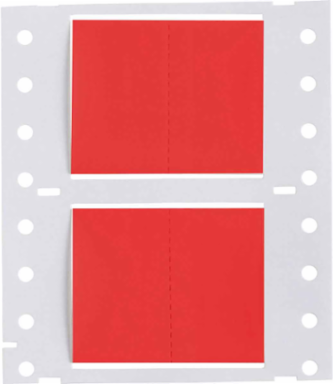

Brady 2HX-1000-2-RD-J-2 3 Inch Heat Shrink Double Sided Wire Marking Sleeves, Polyolefin, 2:1 Shrink Ratio

3 Inch Heat Shrink Double Sided Wire Marking Sleeves, Polyolefin, 2:1 Shrink Ratio
3 Inch Heat Shrink Double Sided Wire Marking Sleeves, Polyolefin, 2:1 Shrink Ratio
3 Inch Heat Shrink Double Sided Wire Marking Sleeves, Polyolefin, 2:1 Shrink Ratio
3 Inch Heat Shrink Double Sided Wire Marking Sleeves, Polyolefin, 2:1 Shrink Ratio
3 Inch Heat Shrink Double Sided Wire Marking Sleeves, Polyolefin, 2:1 Shrink Ratio
  • MPN: 2HX-1000-2-RD-J-2
  • UPC: 662820654032
  • PPN: BRD-2HX-1000-2-RD-J-2

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

Features

  • Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
  • RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
  • Tested per ASTM E162 and ASTM E662
  • Operating temperature of -40°F to 248°F (-40°C to 120°C)

Specifications

Specifications

Material Number
B-7642
Diameter as Supplied
1 in
UOM
Roll of 5000 Each
Maximum Service Temperature °F
248 °F
Minimum Service Temperature °F
-40 °F
Minimum Wire Gauge
2/0 AWG
Product Number
129853
Quantity per Roll
5000
Recovered Diameter
0.5 in
Shrink Ratio
2:1

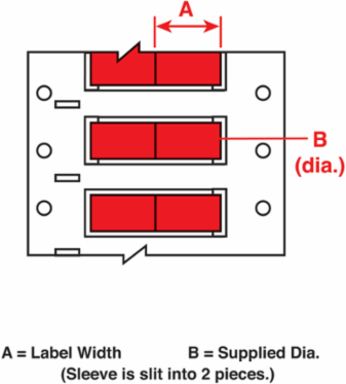

Sleeve Size(m)
25.4 mm Dia x 25.4 mm W
Sleeve Width
1 in
Applications
Cable & Wire Marking
For Use with Printer
BBP®72 Label Printer, BradyPrinter i5100, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer
Label Properties
Heat Shrink Sleeves
Material Properties
Heat-Shrinkable
Resistance Properties
Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
California Prop 65Cancer - || www.p65warnings.ca.gov
Dimensions1.66 in H
FinishMatte
Maximum Wire Diameter0.95 in
Minimum Wire Diameter0.5 in
Printable SidesDouble-Side Printable
UPC662820654032
Quantity per Row2
Roll Width2 in
Sleeve Size1 in Dia x 1 in W
Sleeve SlitsYes
Trade NamePermaSleeve®
ColorRed
Label/Media FormatRoll
MaterialPolyolefin
Print TechnologyThermal Transfer
Suggested Ribbon SeriesR4300, R6000, R6400, R6600
