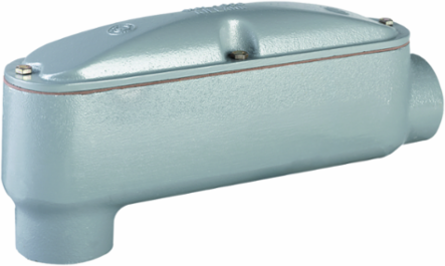

Killark MOLB-8 3 Inch LB Aluminum Mogul Conduit Body with Cover & Gasket, 240 Cu. In. Volume
- MPN: MOLB-8
- UPC: 783936410135
- PPN: HBL-MOLB-8
- UNSPSC: 39131708
CAD
$1648.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3" LB Hub,Aluminum Mogul Conduit Body
Features
- A raised dome cover permits additional wiring room
- Furnished with captive ss screws and gasket
- LBD, C and UB Series available with builtin cable-pulling rollers on sizes 1-1/2” and larger. Add -WR to catalog number. Example MOLBD-5-WR.
- A raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 240 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Finish
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Hub Size
- 3"
- Width
- 8.875 in
- Application
- Mogul fittings are normally used where the standard "O" Series conduit bodies do not offer a sufficient amount of wiring room. For right angle bends where splices, pulls, and taps are needed in a weather-proof chamber.
- Type
- Mogul Conduit Body With Cover & Gasket
- Description - Invoice
- MOL SERIES 3" (CB)
- Harmonization Code
- 7609000299
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LB
- Series
- Moguls Series
- BOX SIZE
- (in)
- Item Package Type
- K-PAK (cover & gasket included)
- NAICS Code
- 3359323110
Special FeaturesA raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 240 cu. in.
Country of OriginUnited States
Dimensions23 in x 8.875 in x 5 in
Height5 in
Length23 in
Engineering Drawing 1 Display TextMOLB-8 Engineering Drawing
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging11.24
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936410135
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
