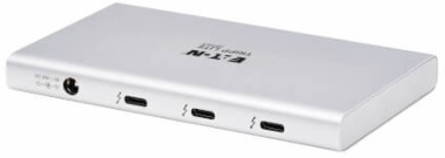

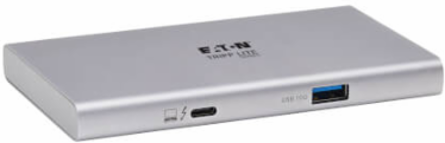

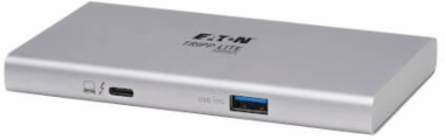

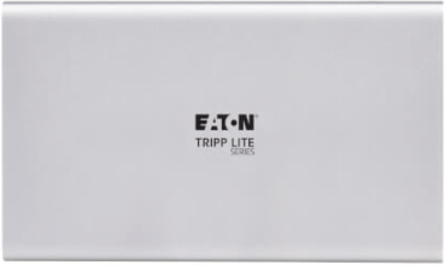

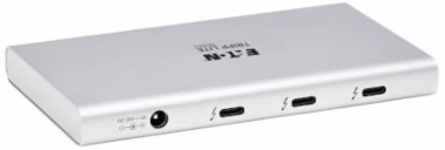

Tripp Lite MTB4HUB301 USB Hub, Thunderbolt 4, 4-Port, 8K, Dual 4K 60 Hz, USB 3.2 Gen 2, 100W Charging, Gray
- MPN: MTB4HUB301
- UPC: 037332263117
- PPN: TRP-MTB4-HUB3-01
CAD
$331.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
4-Port Thunderbolt 4 Hub - 8K, 2x 4K 60 Hz, USB 3.2 Gen 2, USB-A Port, 100W Charging, Gray
Features

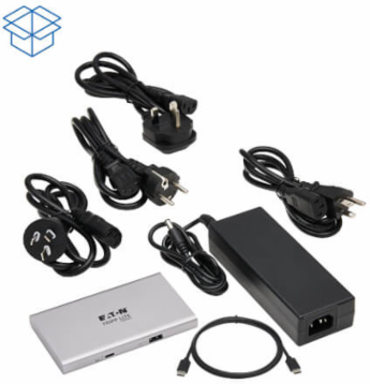

- 4-Port Thunderbolt 4 Hub
- Thunderbolt 4 passive cable (M/M), 2.6 ft. (0.8 m)
- External power supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 20V 5A)
- (4) International plug adapters (North America, U.K., Europe, Australia)
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| Host Connector | Thunderbolt 4 (USB-C Male) |
|---|---|
| Audio Ports | Thunderbolt 4 (USB-C Female) |
| Data Ports | (3) Thunderbolt 4 (USB-C Female); USB-A (Female) |
| Dock Connectors | x3 Thunderbolt 4, x1 USB-A 3.1 Gen2 |
| Side B - Connector 1 | USB 3.1 A (Female) |
| Input Ports | x1 USB-C Thunderbolt 4 (Female) |
| Charging Ports Details | (x3) Thunderbolt 4 Ports support maximum 15W charging (no PD Charging); (x1) USB-A port supports maximum 900mA charging |
| AC Power Adapter Plug | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America |
| Maximum Input Amps | 1.5 |
| Power Source Type | AC Adapter with detachable power cord |
| Cable Length | 2.62 ft |

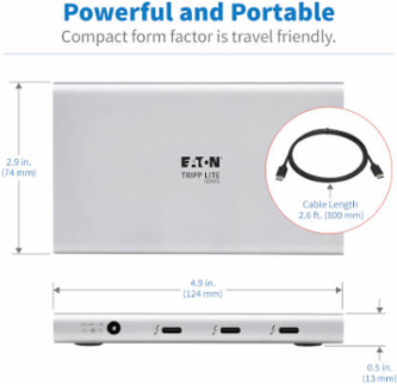

| Unit Dimensions | 0.510 x 2.910 x 4.880 in |
| Video Ports | (3) Thunderbolt 4 (USB-C Female) |
|---|---|
| Audio Specification | Pass-through audio via Thunderbolt 4 output ports |
| Data Ports Details | USB-A - USB 3.2 Gen 2 (10 Gbps); (3) USB-C - Thunderbolt 4 (40 Gbps) |
| Side A - Connector 1 | Thunderbolt 4 (USB-C Female) |
| Side B - Connector 2 | (3) Thunderbolt 3 (Type-C Female) |
| Number of Charging Ports | 4 |
| Total Number of Ports | 5 |
| AC Power Adapter Cord Length | 3.94 ft |
| Voltage Compatibility | 100-240V |
| Number of USB Hub Ports | 1 |
| Cable Outer Diameter | 4.5mm |
| Unit Weight | 0.3748 lb |
Material
| Color | Gray |
|---|
| Cable Jacket Color | Black |
|---|
Compliance
| TAA Compliant Option | N |
|---|
| Product Warranty Period | 1-year limited warranty |
|---|
Reference
| Product Type | Thunderbolt 4 Multiport Hub |
|---|---|
| Compatible Devices | Chromebook; Laptop; Smartphone; Tablet |
| Technology | Thunderbolt; USB 3.x |
|---|
Performance
| Max Supported Video Resolution | 8K (7680 x 4320) @ 30 Hz |
|---|---|
| Number of Monitors Supported | 2 |
| Mirror Mode Details | Mirror two 4K (3840 x 2160) @ 60 Hz displays |
| Chroma Sub Sampling | 4:4:4 |
| Thunderbolt Specification | Thunderbolt 3 (up to 40Gbps short or active cables); Thunderbolt 4 (up to 40Gbps) |
| Charging Method Detail | (x3) Thunderbolt 4 ports each support 15W charging (no PD Charging); (x1) USB-A port supports 900mA charging |
| AC Power Adapter Output Specs | 20V / 5A |
| Storage Temperature Range | 32° to 158°F (0° to 70°C) |

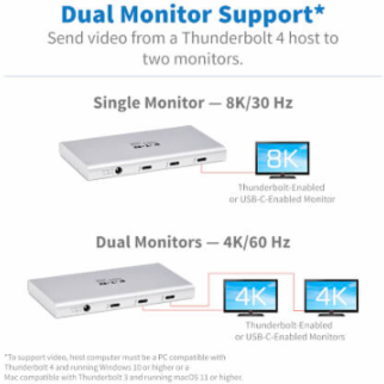

| Resolutions Supported | 8K (7680 x 4320) @ 30 Hz (Single Display); 4K (3840 x 2160) @ 60 Hz (Dual Displays) |
|---|---|
| Extended Mode Details | Extend two 4K (3840 x 2160) @ 60 Hz displays |
| Max Supported Color Depth | 48-bit |
| USB Specification | USB 3.2 Gen 2 (Up to 10 Gbps) |
| Total Charging Watts | 60 |
| AC Power Adapter Input Specs | 100-240V / 50/60Hz / 1.5A |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Relative Humidity | 0-90% non-condensing |
