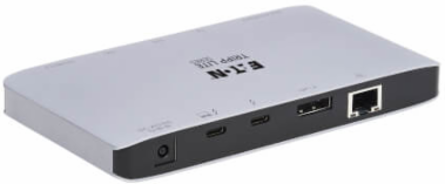

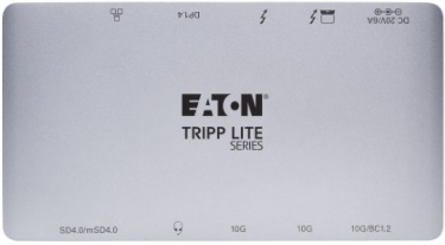

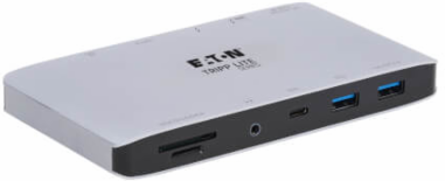

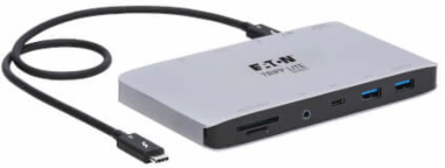

Tripp Lite MTB3DOCK03 Docking Station, Thunderbolt 3, Dual Display, 8K DisplayPort, USB 3.2 Gen 2 10G, GbE, 60W Charging
- MPN: MTB3DOCK03
- UPC: 037332250322
- PPN: TRP-MTB3-DOCK-03
CAD
$526.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Thunderbolt 3 Dock w USB-C Compatibility, Dual Display - 8K DisplayPort, USB 3.2 Gen 2 10G, USB-A/C Hub, Memory Card, GbE, 60W Charging
Features
- Thunderbolt 3 Dock, Dual Display
- Thunderbolt 3 cable (M/M), 1.6 ft
- External power supply (Input: 100–240V, 50/60 Hz, 3.0A; Output: 20V 6A)
- C13 to NEMA 5-15P Adapter, 4 ft
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| Host Connector | Thunderbolt 3 (Type-C Male) |
|---|---|
| Audio Ports | 3.5mm (Female) |
| Data Ports | (2) Thunderbolt 3 (Type-C Female); (2) USB-A (Female); (1) USB-C (Female) |
| Network Ports | RJ45 (Female) |
| SD Card Specification | SD; Micro SD |
| Dock Connectors | DisplayPort, (2) Thunderbolt 3, USB-C Charging, RJ45 LAN, Micro SD, SD, 3.5mm, (2) USB-A, USB-C |
| Side A - Connector 2 | DisplayPort (Female) |
| Side A - Connector 4 | Thunderbolt 3 (Type-C Male) |
| Side B - Connector 2 | Micro SD (Female); SD (Female) |
| Side B - Connector 4 | (2) USB-A (Female); USB-C (Female) |
| AC Power Adapter Plug | NEMA 5-15P North America |
| Maximum Input Amps | 3.0 |
| Power Source Type | AC Adapter with detachable power cord |
| Number of USB Hub Ports | 3 |
| Cable Outer Diameter | 4.4mm |
| Unit Dimensions | 0.670 x 3.150 x 5.790 in |
| Video Ports | Thunderbolt 3 (Type-C Female); DisplayPort (Female) |
|---|---|
| Audio Ports Details | 3.5mm Combo Stereo Audio/Microphone Jack; supports 8/16/22.05/24/32/44.1/48/96/176.4/192/384 KHz, 16/24/32-bit sample rate, auto-detect OMTP/CTIA |
| Data Ports Details | (2) USB-A - USB 3.2 Gen 2 (10 Gbps); (2) USB-C - Thunderbolt 3 (40 Gbps); (1) USB-C - USB 3.2 Gen 2 (10 Gbps) |
| Card Slots | SD (Female); Micro SD (Female) |
| Number of Ports | 10 |
| Side A - Connector 1 | (2) Thunderbolt 3 (Type-C Female) |
| Side A - Connector 3 | RJ45 (Female) |
| Side A - Connector 5 | USB-A (Female) |
| Side B - Connector 3 | 3.5mm (Female) |
| Number of Charging Ports | 5 |
| AC Power Adapter Cord Length | 4 ft |
| Voltage Compatibility | 100-240V |
| DC Barrel Plug | OD: 4.5 x 0.6 x 10.5mm, Positive Pin, Negative Sleeve |
| Cable Length | 1.64 ft |
| Recommended Category Cable | Cat5/Cat5e/Cat6 Cables |
| Unit Weight | 0.5952 lb |
Material
| Color | Black; Gray |
|---|---|
| Cable Jacket Color | Black |
| Connector Plating | Nickel |
| Material of Construction | PC, ABS, Aluminum |
|---|---|
| Cable Jacket Material | PVC |
| LED Indicators | Green (Power), Orange (Transmitting Data) |
Compliance
| TAA Compliant Option | N |
|---|
| Product Warranty Period | 3-year limited warranty |
|---|
Reference
| Product Type | Docking Station |
|---|---|
| Compatible Devices | Chromebook; Laptop; Portable Speaker; Smartphone; Tablet |
| Technology | Cat6; DisplayPort; Thunderbolt; USB 3.x |
|---|
Performance
| Max Supported Video Resolution | 7680 x 4320 (8K) @ 30 Hz (Thunderbolt 3); 3840 x 2160 (4K) @ 60 Hz (MFDP) |
|---|---|
| Resolutions Supported | Thunderbolt 3 Host (DP 1.4 Alt Mode): TB3 8K 30Hz + DP 8K 30Hz individually, or TB3 8K 30Hz + DP 4K 30Hz dual output; USB-C MFDP Host: DP 4K 60Hz (1.4 Alt Mode) or DP 4K 30Hz (1.2 Alt Mode), single output only |
| USB Specification | USB 3.2 Gen 2 (Up to 10 Gbps) |
| Thunderbolt Specification | Thunderbolt 3 (up to 40Gbps short or active cables) |
| HDCP Specification | 1.4; 2.2 |
| Total Charging Watts | 60 |
| Charging Ports / Amps | (1) 0.9A; (2) 1.5A; (2) 3A |
| AC Power Adapter Output Specs | 20V / 6A |
| Storage Temperature Range | 32° to 158°F (0° to 70°C) |
| Storage Humidity Range | 5 to 90% RH, Non-condensing |
| Number of Monitors Supported | 2 |
|---|---|
| Extended Mode | Yes |
| Data Transfer Rate | 40 Gbps |
| Displayport Specification | 1.4 |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit) |
| Charging Ports Details | (2) Thunderbolt 3 ports: 1 charges host up to 60W (5V/9V/15V/20V 3A), 1 supports daisy chaining up to 6 levels at 15W (5V/3A); (2) USB-A 3.2 Gen 2 ports: up to 5V 1.5A and 4.5W (5V/0.9A); (1) USB-C 3.2 Gen 2 port: up to 7.5W (5V/1.5A) |
| AC Power Adapter Input Specs | 100-240V / 50/60Hz / 3A |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
