Tripp Lite MTB3DOCK03INT Thunderbolt 3 Dock with USB-C Compatibility, Dual Display - 8K DisplayPort, USB 3.2 Gen 2 10G, USB-A/USB-C Hub, GbE, International Plug Adapters
- MPN: MTB3DOCK03INT
- UPC: 037332273024
- PPN: TRP-MTB3-DOCK-03INT
CAD
$428.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Thunderbolt 3 Dock with USB-C Compatibility, Dual Display - 8K DisplayPort, USB 3.2 Gen 2 10G, USB-A/USB-C Hub, GbE, International Plug Adapters

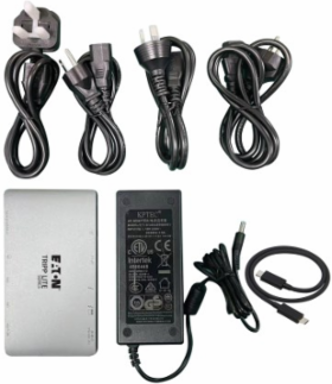

Features
- Thunderbolt 3 Dock, Dual Display

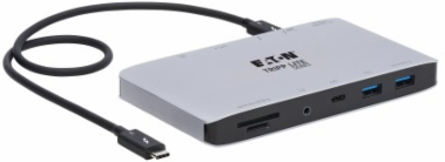

- Thunderbolt 3 cable (M/M), 1.6 ft. (0.5 m)
- External power supply (Input: 100-240V, 50/60 Hz, 3.0A; Output: 20V 6A)

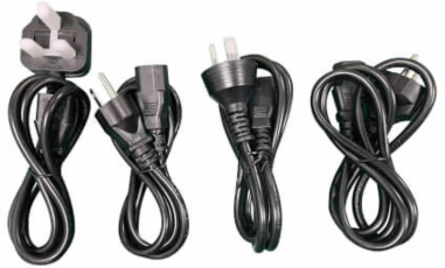

- (4) International plug adapters (North America, U.K., Australia, Europe)
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
- Host Connector
- Thunderbolt 3 (Type-C Male)
- Audio Ports
- 3.5mm (Female)
- Data Ports
- (2) Thunderbolt 3 (Type-C Female); (2) USB-A (Female); USB-C (Female)
- Network Ports
- RJ45 (Female)
- SD Card Specification
- Micro SD; SD
- Dock Connectors
- DisplayPort, (2) Thunderbolt 3, USB-C Charging, RJ45 LAN, Micro SD, SD, 3.5mm, (2) USB-A, USB-C
- Side A - Connector 2
- DisplayPort (Female)
- Side A - Connector 5
- USB-A (Female)
- Side B - Connector 2
- USB-C (Female)
- Side B - Connector 4
- SD (Female)
- Side B - Connector 6
- DisplayPort (Female)
- AC Power Adapter Plug
- AS/NZS 3112 Australia; BS 1363 UK; CEE 7/7 Schuko; NEMA 5-15P North America
- Maximum Input Amps
- 3
- Power Source Type
- AC Adapter with detachable power cord
- Cable Length
- 1.64 ft
- Recommended Category Cable
- Cat5/Cat5e/Cat6 Cables
- Unit Weight
- 3.3731 lb
Video PortsDisplayPort (Female); Thunderbolt 3 (Type-C Female)
Audio Ports Details3.5mm Combo Stereo Audio/Microphone Jack; supports 8/16/22.05/24/32/44.1/48/96/176.4/192/384 KHz, 16/24/32-bit sample rate, auto-detect OMTP/CTIA
Data Ports Details(2) USB-A - USB 3.2 Gen 2 (10 Gbps); (2) USB-C - Thunderbolt 3 (40 Gbps); (1) USB-C - USB 3.2 Gen 2 (10 Gbps)
Card SlotsSD (Female); Micro SD (Female)
Number of Ports10
Side A - Connector 1(2) Thunderbolt 3 (Type-C Female)
Side A - Connector 3RJ45 (Female)
Side B - Connector 1(2) USB-A (Female)
Side B - Connector 33.5mm (Female)
Side B - Connector 5Micro SD (Female)
Number of Charging Ports5
AC Power Adapter Cord Length3.94 ft
Voltage Compatibility100-240V
DC Barrel PlugOD: 4.5 x 0.6 x 10.5mm, Positive Pin, Negative Sleeve
Cable Outer Diameter4.4mm
Unit Dimensions0.670 x 3.150 x 5.790 in
Material
- Color
- Black; Gray
- Cable Jacket Color
- Black
- LED Indicators
- RJ45 Port = Green (x1, Power); Amber (x1, Data)
Material of ConstructionPC, ABS, Aluminum
Cable Jacket MaterialPVC
Compliance
- TAA Compliant Option
- N
Product Warranty Period3-year limited warranty
Reference
- Product Type
- Docking Station
- Compatible Devices
- Chromebook; Laptop; Portable Speaker; Smartphone; Tablet
TechnologyCat5/5e; Cat6; Cat6a; DisplayPort; Stereo Audio; Thunderbolt; USB 3.x
Performance
- Max Supported Video Resolution
- 7680 x 4320 (When connected to TB3 Host); 4K 60 Hz (When connected to USB-C MFDP Host)
- Resolutions Supported
- Thunderbolt 3 Host (DP 1.4 Alt Mode): TB3 8K 30Hz + DP 8K 30Hz individually, or TB3 8K 30Hz + DP 4K 30Hz dual output; USB-C MFDP Host: DP 4K 60Hz (1.4 Alt Mode) or DP 4K 30Hz (1.2 Alt Mode), single output only
- Extended Mode
- Yes
- Data Transfer Rate
- 40 Gbps
- Displayport Specification
- 1.4
- Total Charging Watts
- 120
- Charging Ports Details
- (2) Thunderbolt 3 ports: 1 charges host up to 60W (5V/9V/15V/20V 3A), 1 supports daisy chaining up to 6 levels at 15W (5V/3A); (2) USB-A 3.2 Gen 2 ports: up to 5V 1.5A and 4.5W (5V/0.9A); (1) USB-C 3.2 Gen 2 port: up to 7.5W (5V/1.5A)
- AC Power Adapter Input Specs
- 100-240V / 50/60Hz / 2A
- Operating Temperature Range
- 32° to 113°F (0° to 45°C)
- Operating Humidity Range
- 10% to 85% RH
Number of Monitors Supported2
Supported Resolutions1280x720 (720p); 1920x1080 (1080p); 3840x2160 (4K); 5120x2880 (5K); 7680x4320 (8K)
USB SpecificationUSB 3.2 Gen 2 (Up to 10 Gbps)
Thunderbolt SpecificationThunderbolt 3 (up to 40Gbps short or active cables)
Network Compatibility10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit)
Total Charging Amps6
Charging Ports / Amps(1) 0.9A; (2) 1.5A; (2) 3A
AC Power Adapter Output Specs20V / 6A
Storage Temperature Range14° to 158°F (-10° to 70°C)
Storage Humidity Range5% to 90% RH
