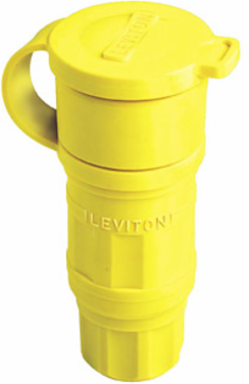

Leviton 29W08 Wetguard Watertight Locking Connector
Leviton 29W08 Wetguard Watertight Locking Connector
- MPN: 29W08
- UPC: 078477968857
- PPN: LEV-29W08
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$145.00/ EA
Description
30 Amp, 125/250 Volt, Non-NEMA, 3P, 3W, Locking Connector, Industrial Grade, Non-Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Assembly Screws
- Stainless Steel 300
- Body Interior
- Nylon
- Bushing
- Santoprene TPV
- Terminal Screws
- Electroless Nickel-coated Brass
Blades/ContactsNickel-Plated Brass
Body MaterialEPTR Rubber
Compression Nut, Strain ReliefNylon
Wire ModuleNylon
Mechanical Specifications
- Cord Grip Range (in)
- .625-1.125
- Terminal Accom.
- #12 to #8
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Wetguard
- Device Type
- Locking Connector
ColorYellow
Standards and CertificationsUL/CSA
Environmental Specifications
- Environment
- Wet
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current LimitingFull Rated Current
GroundingNon-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
