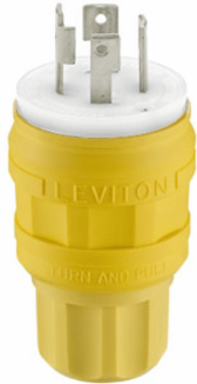

Leviton 28W75 Wetguard Watertight Locking Plug 30 Amp 250 Volt NEMA L15-30P 3-Phase Yellow
- MPN: 28W75
- UPC: 078477969021
- PPN: LEV-28W75
CAD
$118.63
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

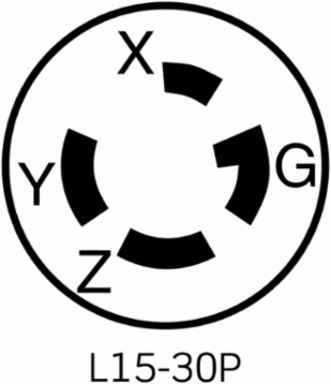

30 Amp, 250 Volt 3-Phase, NEMA L15-30P, 3P, 4W, Locking Plug, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL | 498 |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| Warranty | Limited Lifetime Warranty Warranty |
Material Specifications
| Assembly Screws | Stainless Steel, Non-Magnetic |
|---|---|
| Body Interior | Nylon |
| Bushing | Santoprene TPV |
| Terminal Screws | Electroless Nickel-coated Brass |
| Blades/Contacts | Electroless Nickel-coated Brass |
|---|---|
| Body Material | Santoprene TPV |
| Compression Nut, Strain Relief | Nylon |
| Wire Module | Nylon |
Mechanical Specifications
| Cord Grip Range (in) | .625-1.125 |
|---|---|
| Terminal Accom. | #12 to #8 |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Brand | Wetguard |
|---|---|
| Device Type | Locking Plug |
| Color | Yellow |
|---|
Environmental Specifications
| Environment | Wet |
|---|---|
| IP Rating | IP66, IP67, IP69K |
| Flammability | Rated V-2 per UL 94 |
|---|---|
| Operating Temperature | -40°C to 60°C |
Electrical Specifications
| Amperage | 30 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Phase | 3-Phase |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 4 |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Grounding |
| Pole | 3 |
| Voltage | 250 VAC |
