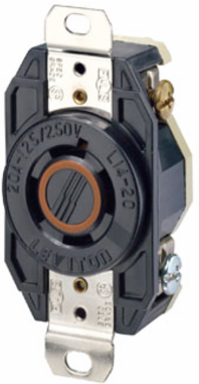

Leviton 2410 Industrial Grade Locking Receptacle 20 Amp 125/250 Volt NEMA L14-20R 3P 4W
Leviton 2410 Industrial Grade Locking Receptacle 20 Amp 125/250 Volt NEMA L14-20R 3P 4W
- MPN: 2410
- UPC: 078477809327
- PPN: LEV-2410
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$31.80/ EA
Description

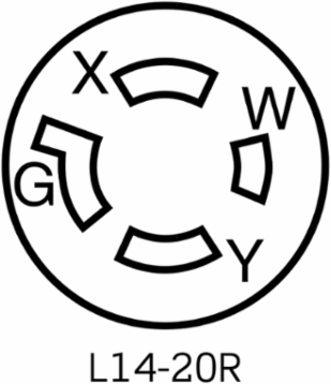

20 Amp, 125/250 Volt, NEMA L14-20R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- Ideal for generators, transfer switches, welding equipment, and RV camper power
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
UL Fed SpecW-C-596
Material Specifications
- Base Material
- Valox
- Color
- Black
- Face Material
- Ultramid
- Grounding Screw
- Chromated Brass
- Strap Material
- Nickel-Plated Brass
- Terminal Screws
- Chromated Brass
Body MaterialNylon
Cover MaterialValox 357
Ground ContactsBrass
Line ContactsBrass
Terminal ClampsNickel-Plated Brass
Mechanical Specifications
- Cord Range
- 0.595 to 0.895
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Marked on Device
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.14-8 AWG
TerminationBack & Side
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Product Features
- Brand
- V-0-Max
Device TypeLocking Receptacle
Warranty
- Warranty
- Limited Lifetime Warranty
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire4
