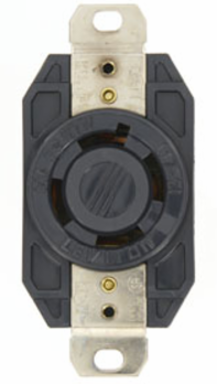

Leviton 2740 30 Amp 600 Volt Flush Mount Locking Receptacle, Industrial Grade, NEMA L17-30R
- MPN: 2740
- UPC: 078477046203
- PPN: LEV-2740
CAD
$52.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

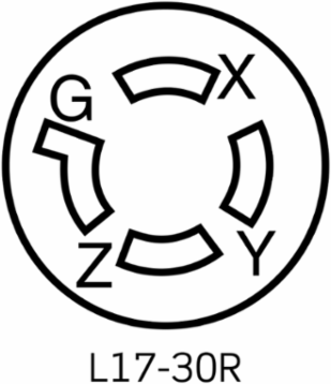

30 Amp, 600 Volt 3-Phase, NEMA L17-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Documentation & Downloads
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Phase | 3-Phase |
| Poles | 3 |
| Grounding | Grounding |
| Screw Terminal Torque | 14-18 in-lbs |
| Temperature Range | -40 C to 60 C |
| Material | Valox, Nylon, Brass, Chromated Brass, Nickel-Plated Brass, Ultramid |
| CSA | C22.2 No. 42 |
| NOM | 057 |
| UL Fed Spec | W-C-596 |
| Country of Origin | Mexico |
| Device Type | Locking Receptacle |
| Terminal ID | Marked on Device |
| Line Contacts | Brass |
| Current Limiting | Full Rated Current |
| Cover Material | Valox 357 |
| Base Material | Valox |
| Terminal Screws | Chromated Brass |
| Brand | V-0-Max |
| Voltage | 600 VAC |
|---|---|
| NEMA | WD-1 & WD-6 |
| Wires | 4 |
| Terminal Accommodation | 14-8 AWG |
| Dielectric Voltage | 2000 V per UL498 |
| Mounting Type | Flush Mount |
| Flammability Rating | Rated V-0 per UL 94 |
| UL | 498 |
| ANSI | C-73 |
| Color | Black |
| Environment | Corrosive |
| Termination | Back & Side |
| Grounding Screw | Chromated Brass |
| Strap Material | Nickel-Plated Brass |
| Temperature Rise | Max 30 C after 250 cycles OL at 200% rated current |
| Body Material | Nylon |
| Ground Contacts | Brass |
| Face Material | Ultramid |
