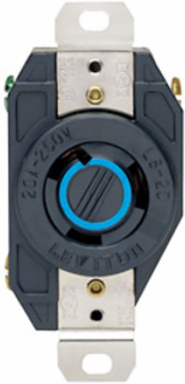

Leviton 2320 20 Amp, 250 Volt, Flush Mount Locking Receptacle, Industrial Grade
Leviton 2320 20 Amp, 250 Volt, Flush Mount Locking Receptacle, Industrial Grade
- MPN: 2320
- UPC: 078477801208
- PPN: LEV-2320
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$26.37/ EA
Description

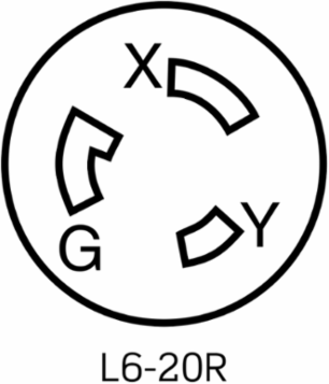

20 Amp, 250 Volt, NEMA L6-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- Ideal for data centers, PDUs, and generators
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
UL Fed SpecW-C-596
Material Specifications
- Base Material
- Valox
- Color
- Black
- Face Material
- Ultramid
- Grounding Screw
- Chromated Brass
- Strap Material
- Nickel-Plated Brass
Body MaterialNylon
Cover MaterialValox 357
Ground ContactsBrass
Line ContactsBrass
Terminal ScrewsChromated Brass
Mechanical Specifications
- Cord Range
- 0.385 to 0.780
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Torque Range
- 14-16 in-lbs
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.14-8 AWG
TerminationBack & Side
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Warranty
- Warranty
- Limited Lifetime Warranty
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
