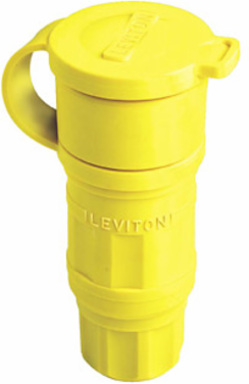

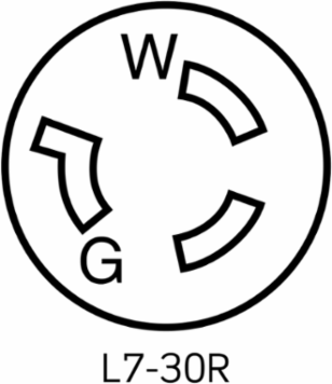

Leviton 29W49 Wetguard Watertight Locking Connector, 30 Amp, 277 Volt, NEMA L7-30R
- MPN: 29W49
- UPC: 078477968758
- PPN: LEV-29W49
CAD
$162.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30 Amp, 277 Volt, NEMA L7-30R, 2P, 3W, Locking Connector, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSA C22.2 No. 42File LR-406
NOM057
UL Fed Spec WC-596File E13393
Material Specifications
- Assembly Screws
- Stainless Steel 300
- Body Material
- EPTR Rubber
- Clamps
- Nickel-Plated Brass
- Compression Nut, Strain Relief
- Nylon
- Wire Module
- Thermoplastic
Blades/ContactsNickel-Plated Brass
BushingSantoprene TPV
ColorYellow
Terminal ScrewsNickel-Plated Brass
Mechanical Specifications
- Amperage
- 30 A
- Current Limiting
- Full Rated Current
- Grounding
- Grounding
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Torque Range
- 12-14 in-lbs
- Wire
- 3
Cord Range.625 - 1.125
Dielectric VoltageWithstands 2000V per UL498
Pole2
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Voltage277 VAC
Wire Gauge12-8 AWG
Product Features
- Brand
- Wetguard
- Standards and Certifications
- UL/CSA
Device TypeLocking Connector
WarrantyLimited Lifetime Warranty Warranty
Environmental Specifications
- Environment
- Wet
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
