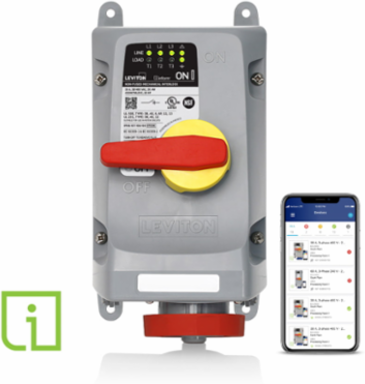

Leviton 430MI7WLEVC 30 Amp Mechanical Interlock, 480 Volt, Wi-Fi Enabled, IP66/IP69K, LEV Series
- MPN: 430MI7WLEVC
- UPC: 078477380772
- PPN: LEV-430MI7WLEVC
CAD
$2089.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

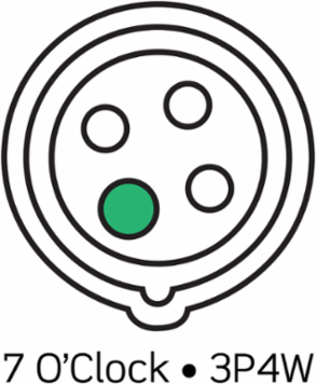

30 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock with Local and Remote Monitoring Inform Technology, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused, Wi-Fi (no hub required). Requires Internet connection for remote monitoring. – Red (480 VAC)
Features
- Mechanically interlocked receptacle prevents connecting or disconnecting plugs under load
- High visibility LEDs provide visual confirmation of power being delivered to or removed from connected equipment (minimum 10 year LED lifespan)
- Inform app details voltage level readings for troubleshooting without exposing workers to live parts
- Equipment ground monitoring reduces shock hazard by validating the integrity of the ground connection
- Inform technology identifies disturbances that can impact machine performance and minimize unplanned downtime by monitoring line- and load-side voltage, liquid accumulation inside the enclosure, ground continuity and welded contacts

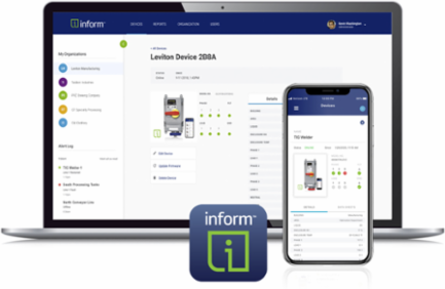

- The Inform app provides remote monitoring of your devices in real-time, so you can be notified immediately of any abnormal operating conditions - (mobile and desktop versions available)

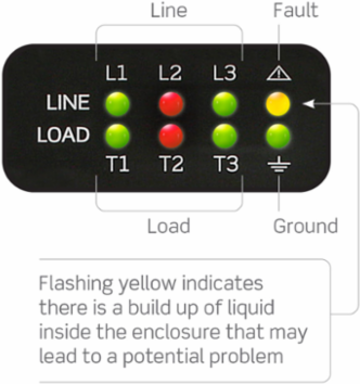

- Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure LEV Series Savings Calculator Compatible with Wi-Fi® 802.11 a/b/g/n networks @ 2.4GHz and 5GHz with WPA or WPA2 security. If using a variable frequency drive (VFD), it must be installed between the mechanical interlock switch and the motor. Click here to learn more about our full line of LEV Series IEC 60309 devices. Click here to learn more about Inform Technology.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Contact Material
- Nickel-Plated Brass
- Handle Material
- PBT+PC with TPE Overmold
- Housing Screws
- 303 Stainless Steel
Gasket MaterialChloroprene
Housing MaterialPBT
Mechanical Specifications
- Cold Impact
- 5 ft drop at -35°C for 3 hrs per UL746C
- Mold Stress Relief
- 70°C for 7 hours without deformation
Crush Test100 lbs for 1 minute per surface
Product Features
- Color
- Red
- Device Type
- Non-Fused Mechanical Interlock
- Series
- LEV Series
ConfigurationNorth American
FeatureLED Indication|Wi-Fi Enabled
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- IP Rating
- IP66, IP67, IP68, IP69, IP69K
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
- UV Resistance
- UV stabilized F1 rated enclosure
Gasket Aging70°C for 168 hr per UL50E
NEMA Rating3R, 4X, 12
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- 2200V for 1 minute
- Horsepower Rating
- 10 HP
- Pole
- 3
- Voltage
- 480 VAC
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance5000 cycles at Rated Current Voltage
Phase3-Phase
SCCR10kA
Wire4
Standards & Certifications
- CSA
- C22.2 No 94.1-07
- IEC Rating
- IEC 60309-1, 60309-2, 60309-4
CommunicationWi-Fi® 802.11 a/b/g/n networks @ 2.4GHz and 5GHz with WPA or WPA2 security
ULUL1682, UL1686, UL50, UL50E, UL60947-4-1, UL60947-1, UL746
