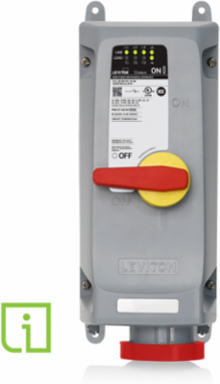

Leviton 460MI7WLEVS 60 Amp Mechanical Interlock, 480 Volt, 3-Phase, IP66/IP67/IP68/IP69K, Red
- MPN: 460MI7WLEVS
- UPC: 078477380864
- PPN: LEV-460MI7WLEVS
CAD
$2646.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

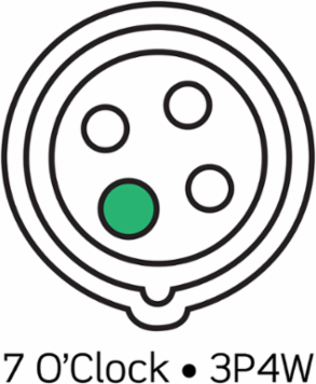

60 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock with Local Monitoring Inform Technology, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused – Red (480 VAC)
Features
- Mechanically interlocked receptacle prevents connecting or disconnecting plugs under load
- High visibility LEDs provide visual confirmation of power being delivered to or removed from connected equipment (minimum 10 year LED lifespan)
- Equipment ground monitoring reduces shock hazard by validating the integrity of the ground connection
- Inform technology identifies disturbances that can impact machine performance and minimize unplanned downtime by monitoring line- and load-side voltage, liquid accumulation inside the enclosure, ground continuity and welded contacts

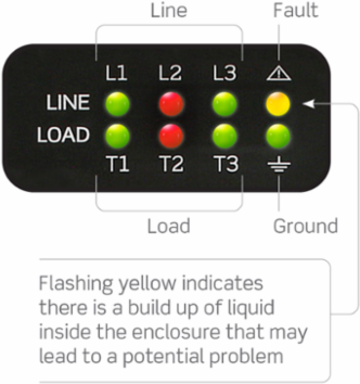

- Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure LEV Series Savings Calculator If using a variable frequency drive (VFD), it must be installed between the mechanical interlock switch and the motor Click here to learn more about our full line of LEV Series IEC 60309 devices. Click here to learn more about Inform Technology.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Contact Material | Nickel-Plated Brass |
|---|---|
| Handle Material | PBT+PC with TPE Overmold |
| Housing Screws | 303 Stainless Steel |
| Gasket Material | Chloroprene |
|---|---|
| Housing Material | PBT+PC |
Mechanical Specifications
| Cold Impact | 5 ft-lb impact at -31°F for 3 hrs per UL746C |
|---|---|
| Mold Stress Relief | 70°C for 7 hours without deformation |
| Crush Test | 100 lbs for 1 minute per surface |
|---|
Product Features
| Color | Red |
|---|---|
| Device Type | Non-Fused Mechanical Interlock |
| Series | LEV Series |
| Configuration | North American |
|---|---|
| Feature | LED Indication |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|---|
| IP Rating | IP66, IP67, IP68, IP69, IP69K |
| NSF | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| UV Resistance | UV stabilized F1 rated enclosure |
| Gasket Aging | 70°C for 168 hr per UL50E |
|---|---|
| NEMA Rating | 3R, 4X, 12 |
| Operating Temperature | -40°C to 60°C |
Electrical Specifications
| Amperage | 60 A |
|---|---|
| Dielectric Voltage | 2200V for 1 minute |
| Horsepower Rating | 40 HP |
| Pole | 3 |
| Voltage | 480 VAC |
| Current Interrupting | Certified for current interrupting at full-rated current and voltage |
|---|---|
| Endurance | 6,000 cycles under load |
| Phase | 3-Phase |
| SCCR | 100kA |
| Wire | 4 |
Standards & Certifications
| CSA | C22.2 No 94.1-07 |
|---|---|
| UL | UL1682, UL1686, UL50, UL50E, UL60947-4-1, UL60947-1, UL746 |
| IEC Rating | IEC 60309-1, 60309-2, 60309-4 |
|---|
