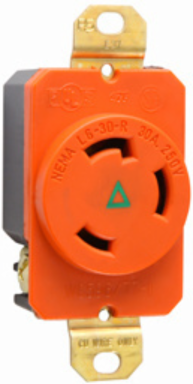

Pass & Seymour IGL630R 30A NEMA L630 Single Receptacle, Orange, Isolated Ground, 1.28 Inch Depth
Pass & Seymour IGL630R 30A NEMA L630 Single Receptacle, Orange, Isolated Ground, 1.28 Inch Depth
- MPN: IGL630R
- UPC: 785007263008
- PPN: P-S-IGL630R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$127.89/ E
Description
30A NEMA L630 Single Receptacle, Orange, Isolated Ground, 1.28 Inch Depth
Features
- UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
- 140 joules of energy absorption in each of thethree modes.
- 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
- 1 filtering capacitor for 7 to 1 average noise reduction.
- Nominal let-through (suppressed) voltage inall 3 modes, 500V.
- LED indicator light.
- Response time less than 1 nanosecond for unmounted MOV.
- Overcurrent protection in all 3 modes.
- Electronic components potted for electrical, mechanical and thermal stability.
- Thermal protection in all 3 modes.
- Leakage current: 0.5 mA at 25: C/120VAC.
- 3 18mm super MOVs to suppress transients in all modes : equally.
- Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
- Varistor voltage: 150V RMS.
- Back and side wire capability including ground terminal.
- Operating temperature: -40: C to 85: C(-40: F to 185: F)
- Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Specifications
Specifications
- Depth
- 1.28 in
- Height
- 2.42 in
- Product Line
- Pass & Seymour
- Phase
- Three
- Standard
- UL 498
- Standard
- FEDSPEC
- Outlet Type
- Locking
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 1.0
- Outlet Type
- Isolated Ground
- Connection Location
- Side Only
- NEMA Configuration Code
- L6-30R
- Warranty Type
- 1-Year Limited Warranty
ColorOrange
Width1.61 in
Country of OriginMexico
Amperage30.0 A
Voltage250.0 V
Number of Wires3.0
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of PolesDouble Pole
Application SectorIndustrial
FeaturesBrass Mounting Strap
Wire Connection TypeScrew Terminals
Special FeaturesCorrosion resistant turnlock locking device
