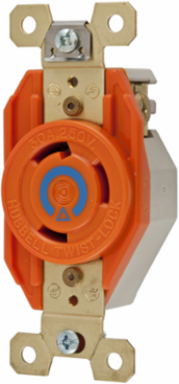

Hubbell Wiring Device-Kellems IG2620 Isolated Ground Flush Receptacle, 30A 250V, NEMA L6-30R, Nylon, Orange
- MPN: IG2620
- UPC: 783585872346
- PPN: HBL-IG2620
- UNSPSC: 39121406
CAD
$91.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Twist-Lock® Devices, Single Flush Receptacle 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Isolated ground, nylon, Orange
Features
- Insulation barrier construction isolates ground contact from mounting strap
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- High-impact, abuse-resistant nylon face
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Isolated Ground
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 2-Pole
- Connectivity
- Back and Side Wired Screw Terminals
- NEMA Rating
- L6-30R
- Operating Temperature
- -40°C to 75°C
- Weight
- 0.20 lb.
- Mounting Hardware
- Screw Mounting
- Color
- Orange
- Country of Origin
- US
Voltage250 V
Number of Wires3-Wire Grounding
Dielectric StrengthWithstands 2,000 V minimum
PhaseSingle Phase
Size3.28 in x 1.70 in x 1.31 in
MaterialNylon, Brass
Special FeaturesIsolated Ground
ComplianceUL 498; CSA C22.2 No.42; Fed.Spec. W-C-596; RoHS Compliant; WR Rating
