Hubbell Wiring Device-Kellems IG4710 Isolated Ground Twist-Lock Receptacle 15A 125V 2-Pole 3-Wire
- MPN: IG4710
- UPC: 783585778044
- PPN: HBL-IG4710
CAD
$64.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

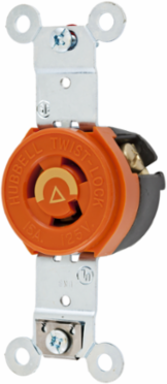

Locking Devices, Twist-Lock®, Isolated Ground Industrial, Single Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Orange.
Features
- Reinforced thermoplastic construction
- Single piece, all brass contacts
- Isolated Ground
- All terminals are back and side wired
- Brass mounting strap with stainless steel grounding clip
Documentation & Downloads
Specifications
Key Specifications
- Application
- Heavy Duty Industrial
- Horsepower - Maximum
- 0.5
- Material
- Thermoplastic
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Display Size
- Standard Sized Product
- Length
- 3.28 in
- Width
- 1.53 in
- Connectivity
- Screw Terminals
- Current Rating
- 15 A
- Phase
- Single Phase
- Voltage Rating Description
- 125 V
- Number Of Wires
- 3-Wire
- Industry Standard(s)
- Listed to UL 498
- Carton Quantity
- 10 EA
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Item Type15A Isolated Ground Single Receptacle
Material - Mounting HardwareScrew Mounting
OEM Brand NameHubbell Wiring Device-Kellems
UPC783585778044
Height1.27 in
Weight0.20 lb
Amperage Rating15 A
Current / Amperage Rating15 A
Dielectric StrengthWithstands 2,000V minimum
Voltage Rating125 V
Wattage1875 W
Wire Size#18 AWG to #10 AWG
Nema RatingL6-15R
