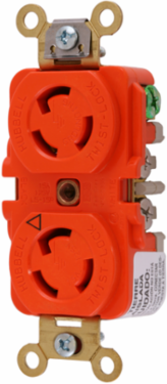

Hubbell Wiring Device-Kellems IG4700A Twist-Lock Isolated Ground Duplex Receptacle 15A 125V 2-Pole 3-Wire
- MPN: IG4700A
- UPC: 783585002392
- PPN: HBL-IG4700A
- UNSPSC: 39121406
CAD
$64.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Twist-Lock®, Isolated Ground Industrial, Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Orange.
Features
- Reinforced thermoplastic construction
- Single piece, all brass contacts
- Single point break-off tabs
- Mounting strap tabs lock the body and base together
- Isolated Ground
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | IG4700A AutoCAD Drawing |
|---|---|
| Current / Amperage Rating | 15 A |
| Height | 1.17 in |
| Industry Standard(s) | Listed to UL 498;WR Rating |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Amperage Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | L6-15R |
| Number of Wires | 3-Wire |
| Size | 3.29 in x 1.70 in x 1.17 in |
| Standard | Listed to UL 498;WR Rating |
| Wire Size | #18 AWG to #10 AWG |
| Weight | 0.35 lb. |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology FAQ |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Description - Invoice | LKG DUP RCPT, IG, 15A 125V, L5-15R, OR |
| Harmonization Code | 8536690200 |
| MSDS Flag | No |
| Sub Class Code | A08A110 |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 16.070 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 45.900 in |
| Pallet Weight | 1291.950 lb. |
| NAICS Code | 335931A102 |
| Country of Origin | United States |
|---|---|
| Dimensions | 3.29 in x 1.70 in x 1.17 in |
| Horsepower - Maximum | 0.5 |
| Length | 3.29 in |
| Standards - RoHS Compliance Status | CM |
| Application | Heavy Duty Industrial |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Isolated Ground |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
| Width | 1.70 in |
| Connectivity | Back and Side Wired |
| Nema Rating | L6-15R |
| Number Of Wires | 3-Wire |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | IG4700 |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| BOX SIZE | 3.300x9.300x4.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585002392 |
| Case - Total Units | 50 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585002391 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
