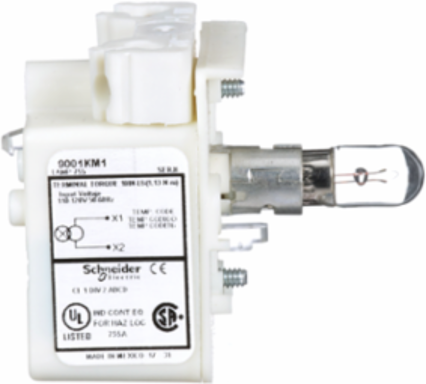

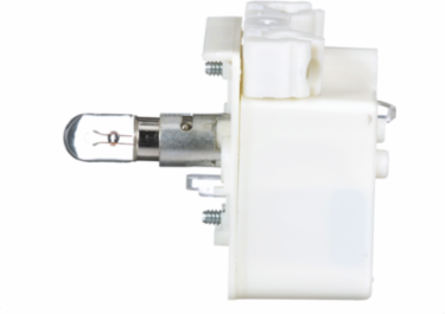

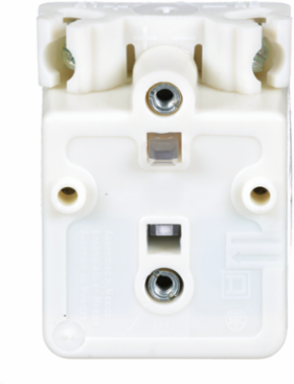

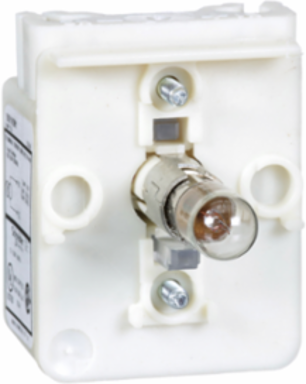

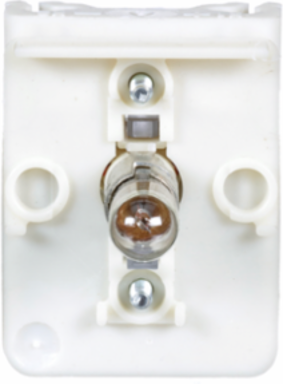

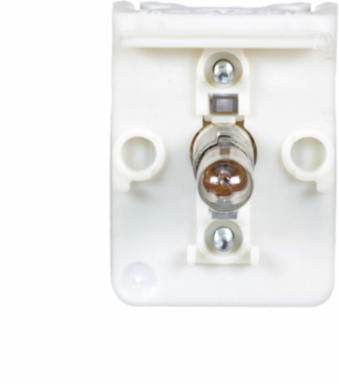

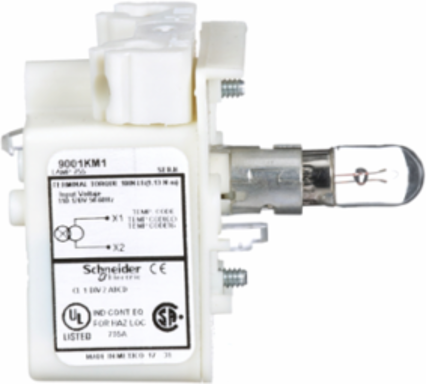

Schneider Electric 9001KM1 Harmony 9001K Light Block, 30mm, Incandescent Bulb, 110-120V

MPN: 9001KM1
UPC: 785901725237
PPN: SCH-9001KM1

$147.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Features

Engineered as a direct-fit light block for the heavy-duty 30mm Harmony 9001K and 9001SK metal operator series, this component allows industrial panel builders to seamlessly add bright visual illumination to non-lighted pushbuttons, selector switches, and pilot lights. It locks firmly into position behind the main operator head, providing high-reliability status signaling without requiring you to replace your entire control assembly.
Built to operate on a direct, full-voltage electrical configuration, this light block accepts a standard 120V AC input supply at 50/60 Hz without needing an integrated step-down transformer. This simplified internal wiring schematic reduces thermal load generation inside your control cabinet and cuts installation costs by hooking directly into common 120V industrial auxiliary power circuits and PLC outputs.
Designed with a standard BA 9s miniature bayonet base, this versatile light module accepts both traditional incandescent bulbs and modern, high-efficiency LED lamps. This interchangeable socket structure allows maintenance electricians to swap out blown lamps or quickly change field signaling colors in seconds from the back of the panel, avoiding the expense of purchasing completely new, sealed electronic blocks.
Boasting a robust, enclosed polymer housing that satisfies strict UL 508, and CSA C22.2 No 14 standards, this industrial block maintains the integrity of your panel's environmental ratings when paired with 9001K control heads. It effectively shrugs off severe ambient vibration, airborne particulate dust, and oil mist, ensuring uninterrupted diagnostic telemetry in demanding automotive assembly, chemical processing, and mining environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	Harmony 9001K, Harmony 9001SK
Carbon Footprint Of The Distribution Phase [A4]	0.040029223938295284, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0005461126171221425, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bulb Base	BA 9s
Device Short Name	9001K
Light Block Supply	via integral transformerdirect via integral transformer 6 V
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Shock Resistance	50 gn IEC 60068-2-27
Supply Frequency	50...60 Hz
Total Lifecycle Carbon Footprint	0.6 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	49
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8531809051

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	UL 508, NEMA
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.16256981865592346
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.40384395111254456
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	9001K
Electrical Shock Protection Class	class II conforming to IEC 61140
Light Source	incandescent bulb
Product Or Component Type	light block
Returnability	Yes
Software Version	v6.2.4
Sustainable Packaging	Yes
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP2503027EN
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
[Us] Rated Supply Voltage	110...120 V120 V AC
Package Weight(Lbs)	74.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.6069891063238855
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP10 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06
