Square D

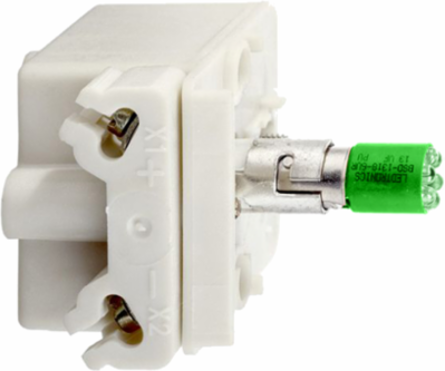

Square D 9001KM58LG Light block, Harmony 9001K, Harmony 9001SK, shallow depth, 30mm, LED green, 110-120V

Light block, Harmony 9001K, Harmony 9001SK, shallow depth, 30mm, LED green, 110-120V
  • MPN: 9001KM58LG
  • UPC: 785901637332
  • PPN: SCH-9001KM58LG

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$176.31/ EA

Description

Light block, Harmony 9001K, Harmony 9001SK, shallow depth, 30mm, LED green, 110-120V

Specifications

Environment

Product Certifications
UL 508 || NEMA
Ambient Air Temperature For Storage
-40-70 °C
Electrical Shock Protection Class
class II IEC 61140
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP20 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
StandardsCSA C22.2 No 14 || EN/IEC 60947-1 || JIS C 852 || JIS C 4520 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1
Shock Resistance50 gn IEC 60068-2-27
Protective TreatmentTC

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

[Us] Rated Supply Voltage
110...120 V
Light Source Colour
green
Light Block Supply
full voltage
Net Weight
0.115 kg
[Us] Rated Supply Voltage
110...120 V AC/DC
Dimension Typeshallow depth
Light SourceLED
Light Block Colourgreen
Size30 mm

Specifications

Range Of Product
Harmony 9001K || Harmony 9001SK
Product Or Component Type
light block
Bulb Base
BA 9s
Light Block Supplydirect
Device Short Name9001K
