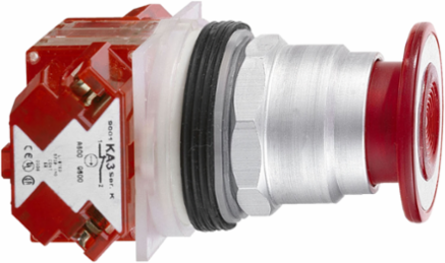

Schneider Electric 9001KR9RH6 Push Button, Mushroom Head 41mm, Red, 30mm, IP66, 1 NC
Schneider Electric 9001KR9RH6 Push Button, Mushroom Head 41mm, Red, 30mm, IP66, 1 NC
- MPN: 9001KR9RH6
- UPC: 785901034360
- PPN: SCH-9001KR9RH6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$193.57/ EA
Description
This Harmony 9001K, modular red push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape and 40mm mushroom head and 1 x NC contact. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Environment
- Product Certifications
- NEMA || UL 508
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
StandardsIEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Operator Additional Information
- screw-on plastic
- Contacts Material
- silver alloy contacts
- Mounting Diameter
- 30 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Shape Of Signaling Unit Head
- round
- Head Material
- plastic
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Cad Overall Height
- 103 mm
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Contacts Type And Composition
- 1 NC
- Bezel Material
- metal
- Operator Position Information
- 2 positions
- Type Of Operator
- push-pull
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Cad Overall Depth
- 74 mm
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Positive Openingwith IEC 60947-5-2
Operator Profilemushroom Ø 41 mm
Rated Breaking Capacity3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Cap/Operator Or Lens Colourred
Net Weight0.141 kg
Size30 mm
Device Presentationcomplete product
[Icm] Rated Short-Circuit Making Capacity12 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Mechanical Durability5000000 cycles
Operating Positionany position
Cad Overall Width54 mm
Shape Of Screw Headcross slotted
Specifications
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- push-button
- Device Short Name
- 9001K
Type Of Operatorpush-pull
Operator Profilered mushroom Ø 41 mm, unmarked
